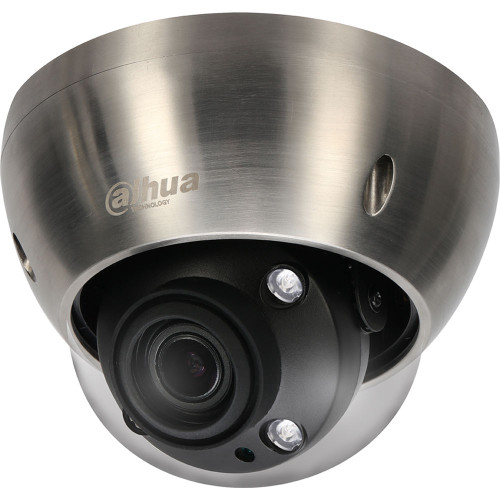

The Dahua DH-IPC-HDBW8232EN-Z-SL is a 2MP Starlight Corrosion-resistant IR Dome Network Camera that uses a 1/1.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 60 fps. Three IR LEDs provide up to 164' of night vision. The 4.1-16.4mm motorized varifocal lens delivers a 92-32° horizontal field of view and 4x optical zoom. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot supports microSD cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. This dome camera is housed in a 316L corrosion-resistant stainless steel enclosure. Additionally, it is IP67-, NEMA 4X-, and IK10-rated for outdoor use in areas at risk of vandalism.
Brand: Dahua
SKU: DH-IPC-HDBW8232EN-Z-SL
In The Box
2MP Corrosion-resistant IR Dome Camera
Dimensions: Ø6.40 x 4.65 inches
Power: 12 VDC, 24 VAC, or PoE+ (802.3at Class 4)
Transmission: RCA
Storage: NAS, Local PC for instant recording, Micro SD Card up to 128GB
Service: No monthly fee
Camera
Image Sensor: 1/1.9-in. 2 MP Progressive Scan CMOS
Effective Pixels: 1920(H) x 1080(V)
RAM/ROM: 1024 MB / 128 MB
Scanning System: Progressive
Minimum Illumination Color: 0.002 lux at F1.53, 0 lux at F1.53 with IR on
S/N Ratio: More than 50 dB
IR Distance: Up to 50.0 m (164.04 ft)
IR On/Off: Control Auto, Manual
IR LEDs: Three (3)
Lens
Lens Type: Motorized, Auto Iris (HALL)
Mount Type: Board-in
Focal Length: 4.1 to 16.4 mm
Max. Aperture: F1.53
Angle of View Horizontal: 32° to 92°, Vertical: 18° to 53°
Optical Zoom: 4x
Focus Control: Motorized
Close Focus Distance: 1000 mm (39.37 in.)
Video
Compression Smart: H.265+, H.265, Smart H.264+, H.264
Streaming Capability: Three (3) Streams
Resolution:
1080p (1920 x 1080)
1.3 MP (1280 x 960)
720p (1280 x 720)
D1 (704 x 480)
VGA (640 x 480)
CIF (352 x 240)
Bit Rate Control/Rate: CBR, VBR / H.264: 24 to 10240 Kbps, H.265: 14 to 6144 Kbps
Day/Night: Auto (ICR), Color, B/W
Noise Reduction: 3D DNR
Advanced Features: Electronic Image Stabilization (EIS), Smart IR, Defog
Digital Zoom/Flip: 16x / 0°, 90°, 180°, 270°
Audio
Compression: G.711a, G.711Mu, AAC, G.726
Network
Ethernet: RJ-45 (100/1000 Base-T)
Interoperability: ONVIF, PSIA, CGI
Streaming Method: Unicast, Multicast
Maximum User Access: 10 Users / 20 Users
Edge Storage: Network Attached Storage (NAS), Local PC for Instant Recording
MicroSD Card Slot, maximum 128 GB
Web Viewer: IE, Firefox, Safari
Management Software: Smart PSS, DSS
Mobile Operating System: IOS, Android
Interface
Audio In: One (1) Channel, RCA; Out: One (1) Channel, RCA
Alarm In: One (1) Channel; Out: One (1) Channel
Electrical
Power Supply: 12 VDC, 24 VAC, or PoE+ (802.3at Class 4)
Power Consumption: < 18 W
Environmental
Operating Conditions: -40 to +60° C (-40 to +140° F), Less than 95% RH
Storage Conditions: -40 to +60° C (-40 to +140° F), Less than 95% RH
Ingress Protection: IP67
Impact Protection: IK10
Enclosure Rating: Conforms to NEMA 4X
Construction
Casing: 316L Stainless Steel
Dimensions: ø162.50 x 118.10 mm
Net Weight: 2.25 kg (4.96 lb)
Gross Weight: 3.0 kg (6.61 lb)
