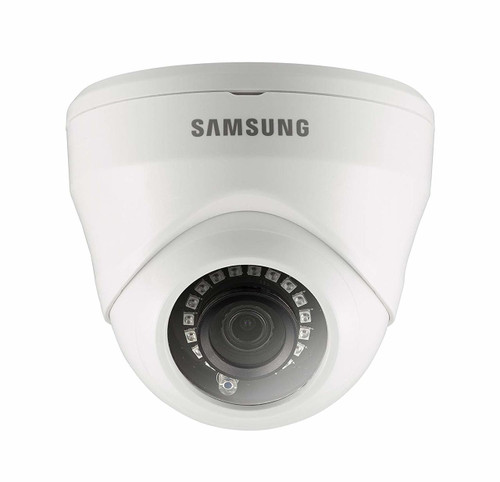

The Samsung 1080p Dome Camera delivers HD resolution and True Day & Night with ICR for perfect color reproduction. It provides 1080p HD real-time recording for smooth playback and clear imaging, allowing you to make out details missed on lower resolution cameras. For accurate, vibrant colors in low light and nighttime conditions, the 2 Megapixel HD camera utilizes an advanced IR Cut Filter and enter into Night Vision mode to capture clear, illuminated footage of your home and business up to 82 ft.
The camera is rated IP66 and is built to withstand extreme weather conditions. It can be installed anywhere around your home as it is durable, weatherproof, and night vision capable. This Security Dome camera is also referred to as a Turret Type Dome or Eyeball Dome Camera. The Ball Lens inside the turret (base) can be moved around in any direction and even spun around so you are always sure to get the perfect viewing angle. The Samsung SDC- 9443DF is compatible with any Samsung 1080p Full HD Video Security Systems.
Brand: Samsung
SKU: SDC9443DF
In The Box
Samsung SDC-9443DF Weather Resistant 1080p HD Analog Dome Camera
60-ft Camera Cable
Screw Anchor
User Manual
Special Feature: This 1080p Dome Camera can provide a clear and quality image even under the circumstance of a backlight, by way of an accurate exposure for the dark area and reducing exposure for the bright area resulting in a clear, detailed and accurate image.
Dimensions: 3.94" x 3.53"
Power: 12VDC +/- 10%, Power Consumption: 4.4W
Transmission: Coax
Storage: N/A
Service: No monthly fee
Video
Imaging Device: 1/2.7" 2M CMOS
Total Pixels: 1952 x 1092
Effective Pixels: 1920 x 1080
Scanning System: Progressive Scan
Min. Illumination: 0 Lux (Auto IR LED on)
S / N Ratio: 52dB (AGC off)
Video Output: BNC(AHD, CVBS Selectable) / AHD : 30fps@1080p / CVBS: 30fps@928*480
Horizontal Resolution: Centre 900 TV lines, Corner 600 TV lines
Lens
Focal Length (Zoom Ratio): 3.6mm
Max. Aperture Ratio: F2.1
Angular Field of View: D:104.6°/H:88.9°/V:46.3°
Min. Object Distance: 0.5m (1.64ft)
Focus Control: Fixed
Operational
IR LED: 18ea LED
Viewable length: 20m (65.62ft)
On Screen Display: Multi-language Support(8): English, French, German, Spanish, Italian, Russian, Turkish, Portuguese
Camera Title: Off / On (Displayed 15 characters)
Day & Night: Auto(ICR)
Backlight Compensation: Off / BLC / HLC
Wide Dynamic Range: D-WDR
Digital Noise Reduction: 2D/3D DNR
Defog: Off / On
Motion Detection: Off / On(4 zones)
Privacy Masking: Off / On (4 zones)
Gain Control: AGC
White Balance: ATW / AWB/ Outdoor / Indoor / Manual / AWC(1,800K° -10,500K°)
Electronic Shutter Speed: AUTO / FLK / 1/50,000sec-1/30sec / X2 - X30
Reverse: Off/Mirror/V-Flip/Rotate
Protocol: ACP
Video Transmission Distance: 300m(3C,2V), 500m(5C,2V)
Electrical
Input Voltage/Current: 12VDC±10%
Power Consumption: 4.4W
Operating Temperature / Humidity
10°C - +50°C (14°F - +122°F) / Less than 90% RH
