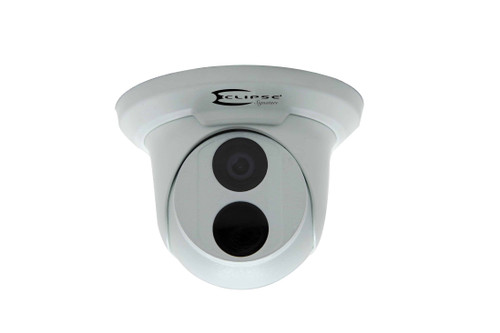

The Eclipse CCTV 2MP Network IP Dome Camera features 1/3" 2 megapixel, Progressive Scan CMOS image sensor, and Digital Wide Dynamic Range. The camera captures Full HD images at a resolution of up to 1920x1080. It performs well even under low-light conditions. Day/Night recording is possible thanks to its IR-cut filter with auto switch. This camera is weather resistant IP67rated and works even on extreme temperatures of -35°C ~ +60°C. With the selectable H.265, H.264, and MJPEG compression formats, this camera makes sure you use less bandwidth and storage space. This Network IP Dome Camera is ONVIF-compliant, making it compatible with a wide range of surveillance devices.
Brand: Eclipse CCTV
SKU: IPT2F2
Dimensions: 5.0 x 3.7 inches
Power: 12VDC or PoE
Transmission: Ethernet
Service: No monthly fee
Camera
Sensor: 1/3", 2 Megapixel, Progressive Scan, CMOS
Lens: 2.8mm@F1.8, Angle of view (H): 99.1°
Shutter: Auto/Manual, 1/6~1/8000s
Day/Night: IR-cut filter with auto switch (ICR)
IR: 30m (98ft) IR range
Auto White Balance: Auto/Manual
Gain Control: Auto/manual
WDR: Digital
Noise Reduction: 2D/3D
Video
Max. Resolution: 1920x1080
Video Compression: H.265/H.264/MJPEG
Frame Rate:
1080P (1920x1080): Max. 30 fps
720P (1280x720): Max. 30 fps
D1 (720x576): Max. 25 fps
Video Streaming: Triple
OSD: Up to 8 OSDs
9:16 Corridor Mode: Supported
Motion Detection: Up to 2 areas
Privacy Mask: Up to 4 areas
Intelligent Video Analytics
Behavior: Detection Intrusion, line crossing, motion detection
Intelligent Identification: Face detection
Statistical Analysis: People counting
Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, QoS, DNS, DDNS, NTP, FTP, UPnP, HTTP
Compatible Integration: ONVIF
Interface
Network: 10M/100M Base-TX Ethernet
General
Power: 12VDC, or PoE (IEEE802.3af)
Power consumption: 3.5W (5.5W with IR on)
Dimensions (∅ x H): 126 x 94 mm
Weight: 0.33kg (0.73lb)
Working Environment: -35°C ~ +60°C (-31°F ~ 140°F)
Humidity = 90% RH (non-condensing)
Ingress Protection: IP67
Note: Camera mount/accessories available separately.
