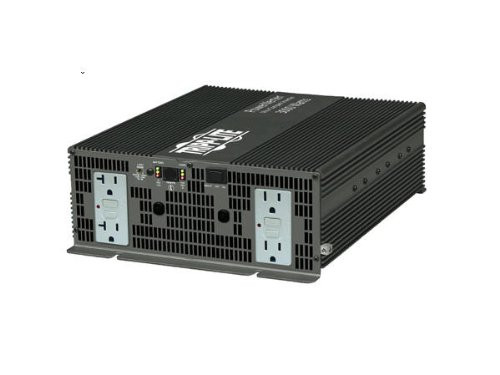

The 3000w 12v Dc To AC Inverter 3000w 12v Dc To AC Inverter continuously supplies up to 3000 watts of 120V AC power to 4 AC GFCI protected outlets from any 12V battery or automotive DC source. Includes a PV remote and 25 feet of cable. Heavy-duty, compact metal case design is among the smallest, most rugged inverters available at this power level. Conforms to OSHA 1926.404 (b) (1) (ii).
NOTE: To protect against high current draw that may occur during inverter failure, two fuse links rated at 250a each should be positioned no more than 18" from the PV3000GFCI's battery in each positive line.
Brand: Tripp Lite
SKU: PV3000GFCI
In The Box
PV3000GFCI Inverter
Remote control LED/switch module (APSRM4)
25-ft. remote cable
Instruction manual
Special Feature: Remote Control LED/Switch Module controls and monitors your inverter from virtually anywhere within your vehicle with use of included extra-long cable. Features daisy-chain capability.
Dimensions: 14.8" x 12.5" x 4.3"
Power: 12V DC input; 120V AC output
Input
Recommended Electrical Service:
12VDC input source capable of delivering 286A for the required duration (when used at full capacity).
For automotive applications, professional hardwire installation with 500A battery system fusing is recommended.
Maximum Input Amps: 286
Maximum Input Amps Details:
Full continuous load: 286A at 12VDC
No load: 2.6A at 12VDC
Shutdown/load sense mode: less than 500 milliamps
Input Cord Length Details: User supplies cabling. Minimum gauges for full load operation: 0 (10 ft max), 00 or 2/0 (13 ft max), Twin 00 using 4 conductors (26 ft)
Voltage Compatibility (VDC): 12
Output
Nominal Output Voltage(s) Supported: 120V
Frequency Compatibility: 60 Hz
Output Receptacles: (4) 5-15R
Pure Sine Wave Output: No
Output (Watts): 3000
Continuous Output Capacity (Watts): 3000
Peak Output Capacity (Watts): 6000
Output Voltage Regulation: Maintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC)
Output Frequency Regulation: 60 Hz (+/- 3 Hz)
Battery
DC System Voltage (VDC): 12
Physical
Cooling Method: Fan
Material of Construction: Aluminum/sheet metal
Form Factors Supported: Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Environmental
Relative Humidity: 0-95% non-condensing
Operating Temperature: 32-104 Fahrenheit / 0-40 Celcius
