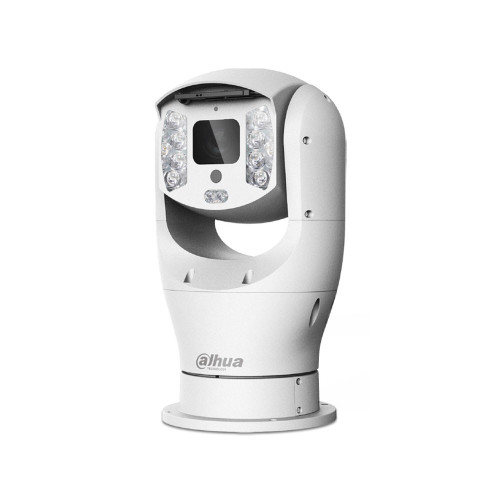

The 2MP 40x Starlight IR PTZ Camera from Dahua Technology uses a 1/2.8" STARVIS progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Eight IR LEDs provide up to 984' of night vision capturing color details in low light down to 0.005 lux. The 4.5-180mm varifocal lens delivers a 67.5-1.7° horizontal field of view. PTZ functionality offers endless panning, endless tilting, and 40x optical zoom and the Predictive Focus Algorithm improves zoom accuracy and decreases focus time. Two-way audio communication is possible thanks to audio I/O ports. An onboard memory card slot supports microSD cards up to 128GB, available separately.
Additionally, the camera has a built-in Intelligent Video System, an analytic algorithm that monitors a scene for tripwire violations, intrusion detection, abandoned or missing objects, as well as support for tamper and face detection, people counting, heat mapping, and PTZ auto-tracking. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. This corrosion-resistant camera is equipped with a built-in heater. It is housed in an IP68- and NEMA 4X-rated metal enclosure that is suitable for outdoor use.
Brand: Dahua
SKU: DH-PTZ19240VN-IRB-N
In The Box
2MP 40x Starlight IR PTZ Camera
Power Adapter
Dimensions: 8.1 x 9.2 x 16 inches
Power: AC24V/5A(±25%), Hi-PoE
Transmission: Ethernet RJ-45
Storage: SD card up to 256GB of memory, NAS, Local PC
Service: No monthly fee
Camera
Sensor: 2 MP 1/2.8" CMOS
Focal Length: 4.5 to 180mm
Maximum Aperture: f/1.2 - f/3.5
Zoom: Optical: 40x, Digital: 16x
Lens Field of View: Horizontal: 67.5 to 1.7°
IR Cut Filter: Mechanical
Day/Night: Yes
Minimum Illumination: Color: 0.005 Lux, B&W: 0 Lux
Shutter Speed: 1/30,000 to 1 Seconds
Video
Streaming Resolution: 1920 x 1080 at 60 fps (8.19 Mb/s H.264)
Supported Video Compression: H.264, H.264+, H.265, H.265+
Multi-View Streaming: Yes, 3 Streams
Automatic Gain Control: Yes
Audio
Streaming: Two-Way
Audio Formats: AAC, G.711, G.722.1, G.726, G.729, MP2L2, PCM
System Integration
Application Programming Interface (API): ONVIF, PSIA, CGI
Event Trigger: Yes
Event Action: Recording, Notification, Alarm
System Requirements
Mobile Operating Systems: iOS, Android
Environmental
Operating Temperature: -58 to 158°F / -50 to 70°C
Operating Humidity: 0 to 95%
IP Rating: IP68
General
Alarm I/O: 7 / 2
I/O Connections: 1 x RJ45, 1 x Power, 1 x BNC, 1 x 9-Pin Serial (RS-485)
IR Range: 984.25' / 300 m
Video Management Software: Smart PSS, DSS
External Storage Options: Local PC, NAS
Power Source: AC, PoE 802.3bt (60 W)
Power Consumption: 35 W, 60 W (With Heater)
Material of Construction: Metal
Dimensions: 405.5 x 234.0 x 205.0 mm
Weight: 21.61 lb / 9.8 kg
