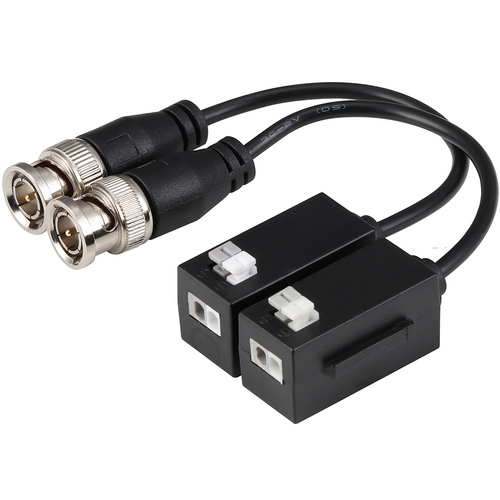

The 1-CH Passive Video Balun from Dahua offers real-time transmission over UTP CAT5E/6 cable. It is compatible with HDCVI, TVI, AHD, and CVBS video formats. It has a transmission distance at 4K: 200 m / 656 ft and comes with female BNC connector and pluggable screw terminal connections. An external power supply is not required. This 4K Balun has excellent anti-thunder, anti-static and anti-interference capabilities.
Brand: Dahua
SKU: DH-PFM800-4K
In The Box
DH-PFM800-4K 4K Balun
Dimensions: 6.84 x 0.77 x 0.83 inches
Power: Passive, no need for power supply
Transmission: HDCVI, TVI, AHD
Properties
Transmission Signal: 1-CH
Network cable Type: UTP CAT5E/6 (material: CU)
Video Transmission Properties
Coaxial Video Connector: BNC-M
Connection Way: RJ45
Compatible Format: HDCVI/TVI/AHD/CVBS
Resolution: 720P/1080P/4MP/5MP/4K
Protection
ESD:
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
UTP Cable Connector:
2KV(different-mode), 4KV(common-mode)
Per: IEC61000-4-5
Impedance
BNC Male Impedance: 75 ohms
UTP Cable Impedance: 100 ohms
Physical Properties
Weight: 40g (0.09lb) (1 pair)
Dimension: 173.8x19.5x21 mm
Shell: ABS
Color: Black
Environmental
Operating Temperature: -30 to +70°C (-22 to +158°F)
Operating Humidity: <95% RH
Storage Temperature: -40 to +80°C(-40 to +176°F)
