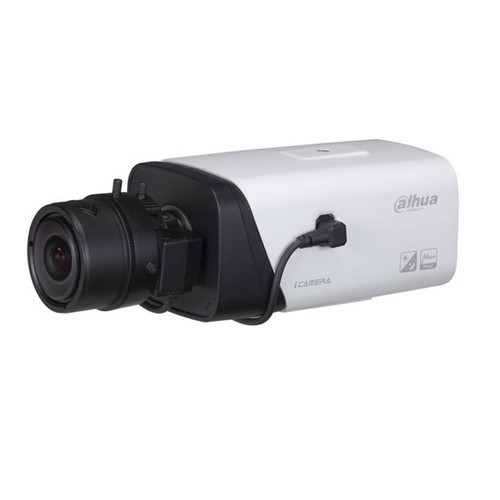

The N45BA5 4MP ePoE Box Network Camera from Dahua Technology uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. It features a C/CS lens mount. It has an IR cut filter that enables day and night functionality. For applications with both bright and low-light conditions that change quickly, True WDR of up to120 dB optimizes both the bright and dark areas of a scene at the same time to provide usable video. Two-way audio communication is possible thanks to a built-in microphone, an audio input, and an audio output. An onboard memory card slot supports microSD cards up to 128GB, available separately.
The camera features Intelligent Video System, a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. It also supports face detection to quickly capture a face and upload the image to a server. The camera features H.265 video compression that reduces bandwidth and storage requirements without sacrificing video quality. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. With a temperature range of -30 to +60 °C (-22 to +140 °F), the camera is designed for extreme temperature environments.
Brand: Dahua
SKU: N45BA5
In The Box
4MP ePoE Box Network Camera
Dimensions: 5.33 x 2.93 x 2.58 inches
Power: 12 VDC, 24 VAC, PoE
Transmission: Ethernet RJ-45
Storage: SD card up to 128GB of memory, NAS, Local PC
Service: No monthly fee
Camera
Sensor: 4 MP 1/3" CMOS
Lens Mount: CS
IR Cut Filter: Mechanical
Day/Night: True
Minimum Illumination: Color: 0.01 Lux, B&W: 0.001 Lux
Video
Streaming Resolution: 2688 x 1520 at 30 fps (10.24 Mb/s H.264)
Supported Video Compression: H.264, H.264+, H.265, H.265+, MJPEG
Multi-View Streaming: Yes, 3 Streams
Automatic Gain Control: Yes
Audio
Streaming: Two-Way
Audio Formats: AAC, G.711, G.726
Built-In Mic: Yes
System Integration
Application Programming Interface (API): ONVIF, PSIA, CGI
Event Trigger: Yes
Event Action: Recording, Notification, Alarm
Data Streaming: No
System Requirements
Mobile Operating Systems: iOS, Android
Environmental
Operating Temperature: -22 to 140°F / -30 to 60°C
Storage Temperature: -22 to 140°F / -30 to 60°C
Operating Humidity: 0 to 95%
General
Memory: 512 MB RAM / 32 MB Flash
Recording Media: microSD (up to 128 GB)
Alarm I/O: 2 / 1
I/O Connections: 1 x RJ45, 1 x Power, 1 x 9-Pin Serial (RS-485), 1 x BNC
Video Management Software: SmartPSS, DSS
Certifications: FCC (Part 15 Class B), UL
External Storage Options: Local PC, NAS
Power Source: AC, DC, PoE 802.3af (15 W)
Power Consumption: 5 W
Material of Constructiom: Metal
Dimensions: 65.5 x 74.4 x 135.4 mm
Weight: 1.46 lb / 0.66 kg
