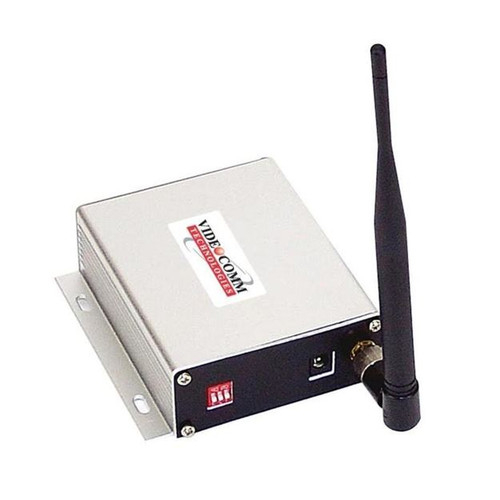

The TX-5808 from VideoComm is a 5.8GHz FM-analog wireless video desktop transmitter perfect indoor wireless video solution for real-time transmission distances up to 1,000 feet line-of-sight. It offers 8 user selectable channels for multiple camera applications, and it is not susceptible to wireless 802.11b/g data networks and other devices.
This 5.8GHz FM-Analog 960H Wireless Desktop Video Transmitter is an ideal solution for portable, temporary and covert surveillance or monitoring applications like parking lots, gas stations, farming/livestock monitoring, and residential perimeter surveillance. Receiver not included.
Brand: Videocomm Technologies
SKU: TX-5808
In The Box
TXO-L1R2409 All Weather Transmitter
RXO-2409XT 2.4 GHz Digital FHSS All-Weather 9-Channel Receiver + RS-485PTZ
2x PS-121CLX 12VDC 1250mA Power Supply with Tinned Raw Power Leads
2x 2.4 GHz 3 dB SMA Knuckle Omni Duck Antenna
2x BRK-250 Uni
Special Feature: This low profile DeskTop Transmitter TX-5808 is the perfect indoor wireless video solution for real-time transmission distances up to 1,000' line-of-sight, perfect for portable, temporary and covert surveillance or monitoring applications.
Dimensions: TX & RX: 7" x 7" x 4"
Power: Power Supply Included: 12VDCRadiated Power: 125mW
Transmission: Operating Frequency: 2.4 to 2.48 GHz Digital Frequency Hopping Spread Spectrum (FHSS)
Service: No monthly fee
Operating Frequency: 5.725GHz - 5.875GHz
Modulation: Frequency Modulation - FM-Analog
Channels: 8 User Selectable Channels
Video Format: NTSC or PAL
Radiated Power: 50mV/m @ 3m
Range & Elevation (Line of Sight): Up to 1,000 Feet
Range (Indoors): Up to 300 Feet
Antenna E Plane Beam: 50°
Antenna H Plane Beam: 360°
Video Connector: BNC Female
Video Impedance & Level: 75 OHMS 1 Volt P-P
Audio Connector: RCA Female
Audio Impedance & Level: 600 OHMS 1 Volt P-P
Weather Proof: No
Power Supply Included: 9VDC Power Supply - Model # PS-9300TMX
Power Connector: Dual Input > 1x 2.1mm Barrel Jack + 1x 1.3mm Barrel Jack
Operating Voltage: 8.0 - 32 VDC - Polarity Protected
Current Consumption: 100mA - @ 12VDC 90% -/+ efficient
Weight: 6.9oz (196g)
Mounting Bracket: Mounting Slot holes - wall / ceilling / desktop
Operating Temperature Range: -22°F to +150°F (-30°C to +66°C)
FCC / IC Approved: Yes
