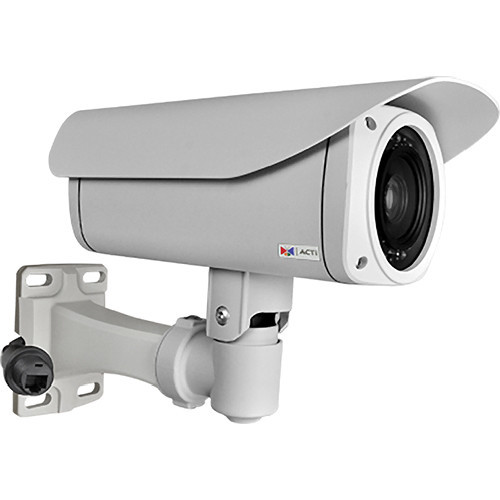

ACTi B45 is designed to be a pivotal device in your security surveillance system. This bullet-shaped camera offers 2MP recording with 1080p resolution. Its 27 onboard IR LEDs enable it to capture clear images up to a distance of 65.6 ft even in complete darkness. The focal length of the camera can be varied with up to 10x optical zoom. The aperture dimensions have been kept at f4.9 - 49mm/F1.8 - 3.0 which allows recording of clear images in longer ranges. With useful features, such as autofocus and DC Iris, the progressive scan CMOS sensor camera is equipped to produce sharp images with minimal noise.
The use of WDR in the camera ensures consistent image clarity under shadows and bright light. Basic WDR of 72dB is included within the camera for automatic adjustment of contrast. The ACTi B45 has the ability to record images at 60 fps in 1920x1080. The weatherproof (IP66) and vandal proof metal casing (IK 10) are tough enough to secure it against weather-related damage and sabotage.
Brand: ACTi
SKU: B45
In The Box
Camera
Hex Screwdriver
Camera Base Wrench
Bracket Wrench
Sunshield, Sunshield Screws
Female & Male Conduit and Cable Glands
Washer
Drill Templ.
2 Terminal Blocks: Power; Audio & DI/DO
Quick Install Guide
Special Feature: The ACTi B45 is ideal for both an indoor, or outdoor security camera network.
Dimensions: 4.8" x 4.0" x 9.5"
Power: PoE Class 3 (IEEE802.3af) and DC 12V / 12W (built-in heater and IR on)
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1450 TVL
Day / Night: Yes
Low Light Sensitivity: Superior
IR Sensitivity Range: 700-1100nm
Focal Length: Zoom, f4.9-49mm
Aperture: F1.6-F3.0
Horizontal Viewing Angle: 57.8° - 6.9°
Vertical Viewing Angle: 33.8° - 4.0°
Max. Frame Rate vs. Resolution: 30 fps at 1920 x 1080;30 fps at 1280 x 720;30 fps at 800 x 600;30 fps at 640 x 480;15 fps at 320 x 240
Image Orientation: Flip, Mirror
Network Protocol & Service: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (3 regions), External device through digital input, Sound detection
Event Response: Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: DC 12V (adapter not included), PoE Class 3 (IEEE802.3af)
Power Consumption: 12 W (PoE)
Weight: 2360g (5.19lb)
Dimensions: (W x H x D): 122.4mm x 223.7mm x 317mm (4.82" x 8.81" x 12.48")
