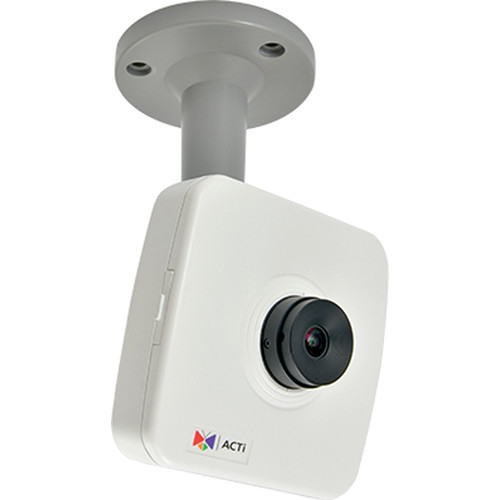

The ACTi E15 is a 5MP IP fisheye security camera in a very compact cube style design. 1/3.2" Progressive Scan CMOS records high-quality images, capturing 2592x1944 at 15fps. Low lux technology and basic Wide Dynamic Range help combat difficulty lighting conditions. The fixed 1.19mm lens provides 180° overview area and 109.8° high detail area fisheye view. H.264 compression helps cut down on file sizes, making for much easier to manage storage capabilities. It also features Two-way audio capability via built-in microphone audio-out 3.5mm phone jack. An SD Card Slot allows for onboard storage.
Brand: ACTi
SKU: E15
In The Box
5MP Fisheye Cube IP Network Camera
Bracket
Mounting Screws
Quick Installation Guide
Warranty Card
Special Feature: 360° Panorama view option with ePTZ (digital pan-tilt-zoom).
Dimensions: 3.8" x 3.8" x 1.8"
Power: PoE Class 2 (IEEE802.3af) / 3.55 W
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1350 TVL
Day / Night: No
Low Light Sensitivity: Standard
IR Sensitivity Range: No
Focal Length : Fixed focal, f1.19mm
Aperture: F2.0
Horizontal Viewing Angle: 189.7° (overview area),115.7° (high detail area)
Vertical Viewing Angle: 189.67°
Max. Frame Rate vs. Resolution:
15 fps at 2592 x 1944
15 fps at 2048 x 1536
15 fps at 1440 x 1080
15 fps at 1280 x 960
15 fps at 800 x 600
15 fps at 640 x 480
15 fps at 320 x 240
Image Orientation: Flip, Mirror
Protocol: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (3 regions), Sound detection
Event Response: Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: PoE Class 2 (IEEE802.3af)
Power Consumption: 3.55 W (PoE)
Weight: 245g (0.543lb)
Dimensions: (W x H x D): 96mm x 96mm x 45mm (3.8" x 3.8" x 1.8")
