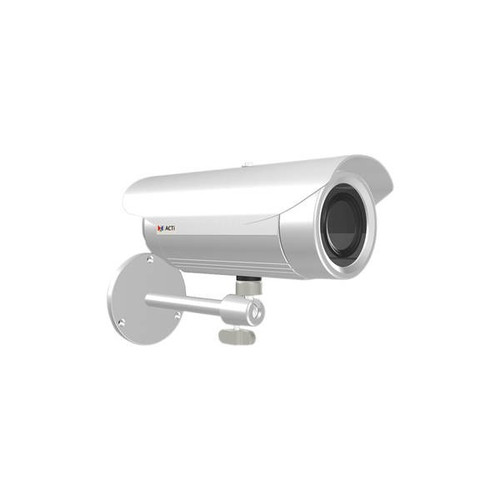

The E33A is a Day/Night Outdoor IP Bullet Camera that works as a stand-alone security solution, or with its ONVIF compliance, it can be easily integrated into a larger surveillance system. The camera utilizes a 1/3.2" 5MP progressive scan color CMOS image sensor with a wide-angle 4.2mm f/1.8 fixed-focus lens to capture video in Full HD 1080p resolution at 30 fps, or 2594x1944 at a slower 15 fps. H.264 and MJPEG formatting maximize your storage and bandwidth usage, and a microSD slot supports microSD cards for on-site recording and edge storage. Digital Noise Reduction (DNR) filters out unusable or corrupt data and delivers a clean and accurate image, with better clarity and sharpness versus cameras without it. The filtered images also improve motion-detection accuracy and use less memory space.
Brand: ACTi
SKU: E33A
In The Box
Bullet Camera
Mounting Screw Kit
Bracket Plate
Sunshield
Sunshield Screw Kit
Bracket
Conduit Gland
Quick Installation Guide
Warranty Card
Special Feature: The flickerless mode of this camera helps to combat camera movement.
Dimensions: 3.03" x 7.48"
Power: PoE Class 2 (IEEE802.3af) / 4.8 W (IR o
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1350 TVL
Day / Night: Yes
Low Light Sensitivity: Standard
IR Sensitivity Range: 700-1100nm
Focal Length: Fixed focal, f4.2mm
Aperture: F1.8
Horizontal Viewing Angle: 62.7°
Vertical Viewing Angle : 46.5°
Max. Frame Rate vs. Resolution:
15 fps at 2592 x 1944
15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
Image Orientation: Flip, Mirror
Protocol: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (3 regions)
Event Response : Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: PoE Class 2 (IEEE802.3af)
Power Consumption: 5.04 W (PoE)
Weight: 704g (1.29lb)
Dimensions: (⌀ x L): 77mm x 190mm (3.03" x 7.48")
