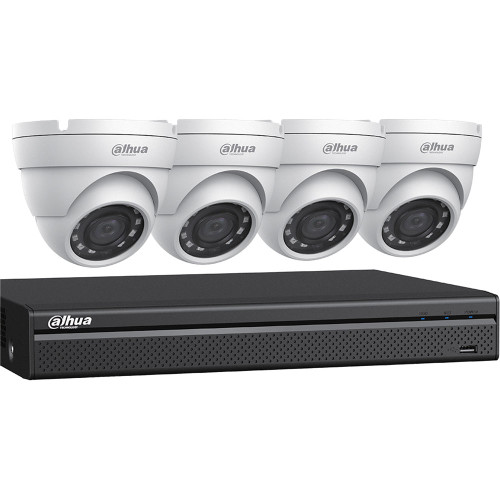

The 4-Channel Penta-brid DVR + 4 x 5MP Mini Eyeball Cameras DVR kit enables you to record from up to four analog cameras. It supports HD-CVI, HD-TVI, AHD, and CVBS signals. It can record video from IP cameras at up to 8MP per channel. It comes preinstalled with a 2TB HDD. Storage is expandable to 10TB. It uses Smart H.265+, H.265, Smart H.264+, and H.264 video compressions. The included turret cameras transmit 2592 x 1944 resolution video at 20 fps. They are each equipped with a 2.8mm fixed lens that delivers a 103° horizontal field of view. The camera pivots from 0 to 360° horizontally and from 0 to 90° vertically. The cameras have a built-in heater and are IP67 rated for outdoor use.
Brand: Dahua
SKU: C544E42
In The Box
4 x 4 MP HDCVI IR Eyeball Cameras
1 x 4-channel 4K HDCVI DVR, 2 TB
Dimensions: DVR: 12.80 x 10.04 x 2.20 inches
Camera: 3.68 x 3.13 inches
Power: 12 VDC, 2 A
Transmission: HDMI, VGA
Storage: Pre-installed 2 TB HDD
Service: No monthly fee
DVR
System
Main Processor: Embedded Processor
Operating System: Embedded Linux
Interface
Analog Camera Inputs: 4 x BNC
HD-CVI: 8 MP, 6 MP, 5 MP, 4 MP, and 1080p at 30 fps, 720p at 60 fps
AHD: 5 MP, 4 MP, 3 MP, 1080p, and 720p at 30 fps
HD-TVI: 5 MP, 4 MP, 3 MP, 1080p, and 720p at 30 fps
CVBS: NTSC
IP Camera Inputs: 4+2 Channels, Each Channel up to 8 MP
Audio: Input/Output: 1 x RCA Input, 1 x RCA Output
Two-Way Talk: Reuse Audio In/Out, RCA
Recording
Compression: Smart H.265+, H.265, Smart H.264+, H.264
Recording Resolution: 4K UHD, 6 MP, 5 MP, 1920 x 2160, 4 MP, 3 MP, 1280 x 1440, 1920 x 1080, 1280 x 720, 960H, D1, CIF
Maximum Incoming Bandwidth: 24 Mb/s
Bit Rate: 32 to 6144 kb/s per Channel
Recording Modes: Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Audio Compression: AAC (First Channel Only), G.711A, G.711U, PCM
Audio Sample Rate: 8 kHz, 16 bits per Channel
Audio Bit Rate: 64 kb/s per Channel
Display
Interface: 1 x HDMI, 1 x VGA
OSD: Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Network
Interface: 1 x 100M RJ45 Port
Maximum User Access: 128 Users
Mobile OS Support: iOS, Android
Interoperability: ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering, and Diagnosis
Playback and Backup
Playback: 1/4
Search Modes: Time/Date, Alarm, MD and Exact Search (Accurate to One Second)
Backup Modes: USB Device, Network
Storage
HDD Capacity: 1 x SATA Port up to 10 TB
HDD Included: 2 TB
USB: 2 x USB 2.0 Ports
RS-485:1 x RS-485 Port for PTZ Control
Electrical
Power Supply: 12 VDC, 2 A
Power Consumption: <10 W
Environmental
Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 10 to 90% RH
Storage Temperature: -4 to 158°F / -20 to 70°C
Storage Humidity: 0 to 90% RH
Certifications
Safety: UL 60950-1, CE-LVD: EN 60950-1/IEC 60950-1
Electromagnetic Compatibility (EMC): FCC Part 15 Subpart B, EN 55032, EN 50130, EN 61000-3-2, EN 61000-3-3
Immunity: EN 55024:2010
Construction
Dimensions: 12.8 x 10 x 2.2" / 325 x 255 x 55 mm
Weight: 2.6 lb / 1.2 kg
Installation: Desktop
Rackmount: Mini 1 RU
Camera
Image Sensor: 1/2.7" Progressive Scan CMOS Sensor
Effective Pixels (H x V): 2592 x 1944
Electronic Shutter Speed: 1/100,000 to 1/30 Seconds
Minimum Illumination: Color: 0.02 Lux at f/1.85, 30 IRE
B&W: 0 Lux with IR
S/N Ratio: >65 dB
IR Range: 98.04' / 30 m
IR Control: On/Off Control (Auto, Manual)
Number of IR LEDs: 12
Lens
Lens Type: Fixed Lens, Fixed Iris
Mount Type: Board-In
Focal Length: 2.8mm
Maximum Aperture: f/1.85
Field of View: Horizontal: 103°
Close Focus Distance: 35.43" / 900 mm
Angle Adjustment:
Horizontal: 0 to 360°
Vertical: 0 to 90°
Rotation: 0 to 360°
Video
Resolution: 2592 x 1944 / 5 MP
Frame Rate:
5 MP at 20 fps
4 MP at 30 fps
1080p at 30 fps
Video Output:
1 x HD-CVI (BNC)
1 x CVBS, AHD, or HD-TVI (BNC, Switchable)
Day/Night: Auto IR Cut Filter/Manual
OSD Menu: Multi-Language
Backlight Compensation: BLC, HLC, Digital WDR
Automatic Gain Control: Supported
Noise Reduction: 2D-DNR
White Balance: Auto, Manual
Smart IR: Auto, Manual
Electrical
Power Supply: 12 VDC ±30%
Power Consumption: Maximum 3.6 W at 12 VDC with IR
Environmental
Operating Conditions: -40 to 140°F / -40 to 60°C, Less than 95% RH
Storage Conditions: -40 to 140°F / -40 to 60°C, Less than 95% RH
Construction
Heater: Built-In
IP Rating: IP67
Casing: Aluminum
Dimensions (Diam. x H): 3.68 x 3.13" / 93.4 x 79.4 mm
Weight: 0.62 lb / 0.28 kg
Certifications
Safety: EN55032, EN55024, EN50130-4, UL60950-1+CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC): FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014
