Easy-to-Setup Security Camera and DVR System

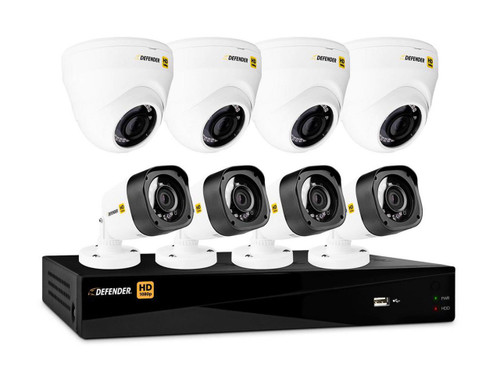

The Defender 8 Channel DVR featuring 8 HD Cameras, including 4 bullet cameras and 4 dome cameras, is extremely user-friendly for all skill levels. The cameras record in 1080p HD with wide angle lenses to ensure exceptional detail is captured. Powerful night vision ensures clear view up to 100 feet in complete darkness and up to 130 feet in ambient light. Three recording modes, including continuous, motion-activated, and scheduled, allow you to take control of your security monitoring. The cameras are made of vandal-resistant, lightweight polycarbonate resin and are IP66-rated for dust and heavy rain. With a pre-mounted 1TB hard drive for storage and capability of recording continuously for 262 hours, you'll never miss a beat with this system.
Monitor your property continuously using the free Defender app which allows you to live stream footage to your phone, tablet, or personal computer. Setting up the entire system is simple with color coded wiring, numbered ports, and a 3-step setup plan.
Brand: Defender
SKU: HD1T8D4B4
Special Feature: Weather-resistant camera features a wide angle lens that helps you capture every detail of license plates, faces, and more.
- Number Of Channels: 8
- Storage Capacity: Max 1TB
- Video Compression: H.264
- Video Format: NTSC/PAL
- Operating System: Linux(embedded)
- Video Output: VGA, HDMI
- Video Input 8 CH Inputs
- Audio Input 4 CH inputs
- Audio Output: 1CH output: (RCA)
- Display Resolution: 1080P/720P/960H
- Display Feature: Single / Quad / S.E.Q.
- Record Speed: 1080P :15fps(each ch) 720P:30fps(each ch) 960H:30fps(each ch)
- Recording Modes: Continuous / Manual / Motion detect
- Synchronous Playback: 8 CH
- Network Type: Lan, DHCP, and DDNS
- HDD Interface: 1 SATA HDD, up to 8TB
- Multiplex Operation: Live display, record, playback, backup and network
- USB Port: 2 x USB (for mouse and backup/upgrade)
- Sensor & Alarm I/ONO
- PTZ Control YES
- Mobile Surveillance: Support Mobile Phones based on iPhone and Android operation system
- VGA/HDMI: 1024*768,1280*1024,1440*900,1920*1080
- Power Supply: DC 12V/2A
- Operating Humidity: 10%~90%
- Operating Temperature: -10°C~+55°C
- Dimensions: 300mm X 227mm X 53mm / 11.81in x 8.93in x 2.08in
- Bullet Camera Specification
- Image Sensor: 2.0 Megapixel, 1/2.7 CMOS
- Housing Material: Polycarbonate Resin
- Effective Pixels: 1920 (H) x 1080 (V)
- Electronic Shutter: 1/25 - 1/10,000 Sec
- Video Frame Rate: 1080P @ 25fps (PAL) / 1080P @ 30fps(NTSC)
- Lens: 3.6mm
- Synchronization: Internal
- Min. Illumination: 0.05Lux @ (F1.2, AGC ON, 0 Lux with IR)
- Video Output: 1 channel BNC
- IR Cut Filter: YES
- IR Led Quantity: 12
- Field Of View: 75° horizontal field of view
- Night Vision Range: Up to 30m (100ft)
- Power Supply: DC: 12V±10%
- Power Consumption: Max 4.2W
- Operating Humidity: Less than 95%RH
- Operating Temperature: -30°C~+55°C
- Ingress Protection: IP66
- Max HD Cable Distance: 300ft
- Dimensions: 172.8mm x 66mm x 64mm (6.8in x 2.6in x 2.5in)
