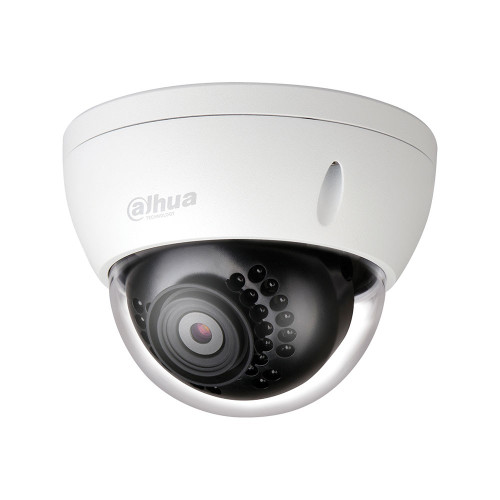

The 2 MP HDCVI Fixed Dome Camera from Dahua features a 3.6mm lens and has an 82.8° horizontal field of view and a 2MP 1/2.9" CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. The IR cut filter and built-in IR LEDs allow it to produce clear images of objects in complete darkness from up to 98' away. Wide dynamic range and automatic gain control help the camera produce accurate images in varying lighting conditions. The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. It is protected against water, dust, and impact with IP67, making it suitable for indoor or outdoor environments and in high-risk environments.
Brand: Dahua
SKU: A21BL03
In The Box
2 MP HDCVI IR Dome Camera, 3.6 mm
Dimensions: 4.33 x 3.19 inches
Power: 12V DC ±25%
Transmission: BNC, Coax
Service: No monthly fee
Camera
Image Sensor: 2 MP 1/2.9" CMOS sensor
Effective Pixels (H x V): 1920 x 1280
Electronic Shutter: 1/30 to 1/100,000 sec
Synchronization: Internal
Minimum Illumination: Color: 0.02 lux at f/2.0, IR LEDs On: 0 lux
Number of IR LEDs and Range: 12 x smart IR LEDs, up to 98' / 30 m
IR Control: Auto, manual
Day/Night: Auto (ICR), color, B&W
Lens
Type: Fixed lens, fixed iris
Lens Mount Type: Board-in
Lens: 3.6mm
Aperture: f/2.0
Field of View: Horizontal: 82.8°
Close Focus Distance: 31.5" / 80 cm
Adjustments:
Pan: 0 to 355°
Tilt: 0 to 65°
Rotation: 0 to 355°
Video
Resolution: 1080p (1920 x 1080)
Frame Rate: 30 fps at 1080p, 30/60 fps at 720p
Video Output: 1 x BNC HD-CVI output, 1 x BNC CVBS, AHD, or HD-TVI output (switchable)
OSD Menu: Multi-language
Backlight Compensation: BLC, HLC, DWDR
Wide Dynamic Range: Digital wide dynamic range
Gain Control: AGC
Digital Noise Reduction: 2D-DNR
White Balance: Auto, manual
Smart IR: Auto, manual
General
Power Supply: 12 VDC ±25%
Maximum Power Consumption: 2.6 W (12 VDC with IR LEDs on)
Operating Temperature: -40 to 140°F / -40 to 60°C
Operating Humidity: <95% RH
Storage Temperature: -40 to 140°F / -40 to 60°C
Storage Humidity: <95% RH
IP Rating: IP67
IK Rating: IK10
Material: Aluminum
Dimensions: 110 x 81 mm
Weight: 0.7 lb / 0.3 kg
