The 720p High Definition DVR with HD Security Cameras provides high-quality videos stored on a 100% duty cycle security-grade hard drive pre-installed inside the DVR. View footages remotely on your iOS/Android device from anywhere in the world.
Brand: Lorex
SKU: LHV00041TC4
In The Box

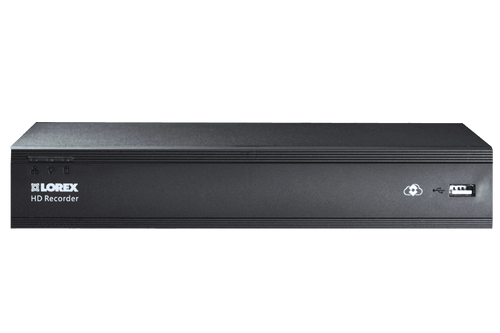

Lorex 4-Channel 720p DVR
4x LBV1511 Cameras
HDMI Cable
Power Adapter
Mouse
Ethernet Cable
4x Mounting Kit
4x BNC/Power Extension Cables
Special Feature: Accurate time stamps with NTP & daylight savings time
Dimensions: 10.2" x 8.7" x 1.6"
Power: Plug-in for power
Transmission: Wired networks
Storage: Pre-Installed 1TB HDD
Service: No monthly fee
DVR
Operating System: Linux embedded
Pentaplex Operation: Simultaneous view / record / playback / backup / remote monitoring
Number of Channels: 4
Video Inputs: 4 x BNC (1 V p-p CVBS 75 Ohms)
Video Output: No
VGA Out: Yes
HDMI Output: Yes
Audio Input: 1 x RCA
Audio Output: 1 x RCA
USB: 1 x USB (at the back), 1 x USB (at the front)
PTZ Control: RS-485 Pelco-D and Pelco-P protocol
Video Output Resolution: 1920 x 1080 HDMI, 1280 x 1024, 1024 x 768
Live Display: 1, 4
OSD Controls: Configurable
System Navigation: USB mouse
Motion Area Setting: Adjustable 22 x 18 grid
Sensitivity Levels: 6
Firmware Upgrades: Automatic over the Internet, via USB, and network
User Access: By user group
Time Synchronization: Auto time sync by NTP server
Video Compression: H.264
Audio Compression: G.711
Recording Rate: 960H: 30/25 fps, 720p: 15/12 fps
Playback Channels: 1 / 4
Playback Speed: Variable, maximum up to 4x
Playback Players: Backup player
Audio Play: No
Storage Type: Up to 1 x SATA HDD
Storage Capacity: 1 TB preinstalled, 4 TB maximum (available separately)
Backup Media: USB flash drive and HDD
Backup File Format: DAV, ASF
Cloud Connectivity: FLIR Cloud
Supported Operating Systems: Windows / Mac OS X
Remote Software Configuration: Client Software (Windows), Safari (Mac)
Email Notification: Text with snapshot
Mobile App Support: iOS and Android
DDNS: Free Lorex DDNS
System Configuration: Full setup configuration over network
Ports: Programmable by user
Network Interface: RJ45 10/100/1000 Mbps
Network Speed Control: 48 kbps to 8 Mbps
Power Consumption: About 10 W (no HDD included)
Power Supply Voltage: 100-240 VAC, 12 VDC, 1.5 A, 50 to 60 Hz
Operating Temperature: 14 to 131°F (-10 to 55°C)
Operating Relative Humidity Range: 10 to 90% RH
Dimensions: 10.2 x 8.7 x 1.6" (25.9 x 22.1 x 4.1 cm)
Weight: 1.7 lb (0.8 kg)
Cameras
Image Sensor: 1 MP 1/4" progressive scan
Video Resolution: 720p
Minimum Illumination: IR LED Off: 0.1 lux, IR LED On: 0 lux
Effective Pixels (H x V): 1280 x 720
Sync System: Internal
Lens Type: 3.6mm fixed
Aperture: f/2.5
Number of IR LEDs: 12 x IR LEDs, up to 130' (40 m) in ambient lighting and 90' (28 m) in total darkness
IR Wavelength: 850 nm
Diagonal Field of View (FOV): 55°
Iris: AES
Shutter Speed: 1/60 (1/50) to 1/100,000 second
S/N Ratio: > 65 dB with AGC off
Video Output: 1 x BNC (Lorex Analog HD)
Compatibility: Compatible with Lorex HD DVR LHV1000 series only
Power Requirement: 12 VDC ± 10%
Power Consumption: Maximum 210 mA with IR
Operating Temperature: -22 to 122°F (-30 to 50°C)
Operating Relative Humidity Range: < 95%
IP Rating: IP66
Dimensions: 2.7 x 2.7 x 6" (70 x 70 x 153 mm)
Weight: 0.3 lb (0.1 kg)
