Camera Provides Clear Imaging Even in Bright Light and Deep Shadow

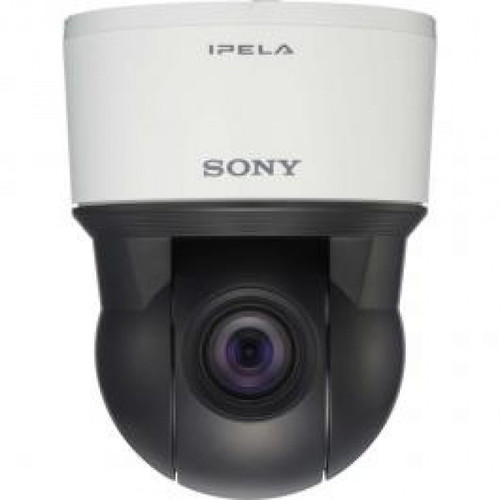

The Sony SNC-EP520 Network PTZ Camera has a subtle, attractive design that allows it to fit in anywhere. It features an autofocus lens that has a 36x optical zoom, and when combined with its digital zoom capabilities, it has a maximum magnification of 432x. DynaView technology enables the camera to handle extreme light and shade, creating clearer views.
For added convenience, users can access the camera via smartphone or tablet to view images and to adjust pan, tilt, and zoom. The camera, which runs on HPoE (High Power over Ethernet) is easy to install. Onboard memory ensures that footage is backed up directly on the camera which conveniently records video in three of the most common codecs: H.264, MPEG-4, and JPEG; this enables you to open and load video on most operating systems, making sure that your footage is always able to be reviewed.
Brand: Sony
SKU: SNC-EP520
In The Box
Sony SNC-EP520 Camera
CD-ROM (User's Guide/Supplied Programs)
Installation Manual
Ceiling Bracket
2x Screws
Template
24V AC Connector
I/O Connector
Special Feature: 36x optical and 12x digital zoom with a total zoom ratio of 432x.
Dimensions: 5 7/8" x 7 5/8"
Power: PoE, 25 W max.
Transmission: 10BASE-T/100BASE-TX (RJ-45)
Storage: 1 GB or more
Service: No monthly fee
Camera
Image Device: 1/4-type EXview HAD CCD
Effective Pixels: Approx. 0.38 Megapixel
Minimum Illumination Color: 1.4lx (F1.6, shutter 1/60sec, AGC ON, 50IRE[IP]); B/W: 0.15lx (F1.6, shutter 1/60sec, AGC ON, Night Mode, 50IRE[IP])
Lens Type: Auto-focus Zoom Lens
Focal Length: f=3.4 to 122.4 mm
F-Number: F1.6 to F4.5
Compression Format: H.264, MPEG-4, JPEG
Pan Angle: 340 degrees
Pan Speed: 300 degrees/s (max)
Tilt Angle: 105 degrees
Tilt Speed: 300 degrees/s (max)
Day Night: Yes
Wide-D: Yes
Zoom Ratio Optical zoom: 36x, Digital zoom 12x, Total zoom 432x
Minimum Object Distance: 10mm (wide) to 1500mm (tele)
White Balance: Mode Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapor lamp
Horizontal Viewing Angle: 57.8 to 1.7 degrees
Electronic Shutter: 1/1 to 1/10,000 s
Exposure Control: Full auto, Shutter priority, Iris priority, Manual
Gain: Auto/Manual (-3 to 28 dB)
Image Size: 704×576, 720×480, 640×480, 384×288, 320×240
Compression Format: H.264, MPEG4, JPEG
Frame Rate: 30 fps
Interface
Interface: 10 BASE-T / 100BASE-TX (RJ-45)
External Microphone Input: Mini-jack (monaural)
Audio Line Output: Mini-jack (monaural), Max ouput level: 1 Vrms
General
Weight: 3 lb 12 oz (1.7 kg) (including sealing bracket)
Dimensions: (WxHxD) ∅ 5 7/8 x 7 5/8 inches (147.4 x 190.9 mm)
Power Requirements: HPoE (IEEE802.3 at compliant) , AC24V
Power Consumption: Approx. 25W
Operating Temperature: 23 to 122°F (-5 to +50°C)
Storage Temperature: -4 to +140°F (-20 to +60°C)
Compression: H.264, MPEG4, JPEG
FPS variable: up to 30
Resolution: SD
Watts Approx.: 25W
System Requirements
Operating System: Microsoft Windows XP (32bit), Microsoft Windows Vista (32bit), Microsoft Windows 7 (32/64bit)
Processor: Intel Core 2 Duo 1.8 GHz or higher, Intel Pentium 4 2.4GHz or higher
Memory: 1 GB or more
Web Browser: Microsoft Internet Explorer 6.0 or later; Firefox 3.5, Safari 4.0, Google Chrome 4.0
