Discreetly Monitor Your Home or Office from Anywhere
Get professional surveillance video of what's going on in your home or business when you use this discreet IP camera from the experts at Samsung. This camera features images in full HD 1920x1080 resolution at 30 frames per second, and its wide 120dB dynamic range results in high image acuity. With 2 megapixels, the images produced by the camera are highly detailed. Capture images with this camera in any type of lighting conditions. At a minimum of 0.5 Lux, this camera will provide you with clear color photos in near darkness. The advanced motion detection and defogging capabilities ensure that the weather conditions won't impact your ability to get the surveillance you need. The camera's remote head is flexible and easily tracks activity.
To view the activities the camera is capturing, you can use the multi-crop streaming feature. The small but powerful 4.6 millimeter lens is housed within a small but durable case that blends in with the background and is barely noticeable. And, because this camera works over IP, you can check in in your footage from anywhere with an internet connection.
Brand: Samsung
SKU: SNB6010
In The Box

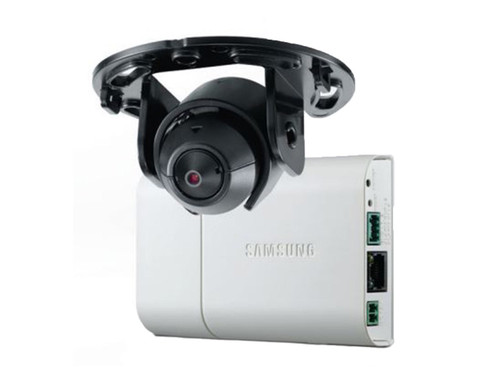

- Samsung SNB-6010 Stealth Remote IP Camera
- User's Guide
- Video
- Imaging Device 1/2.8" PS 2.83M CMOS
- Total Pixels 1,952(H) x 1,116(V)
- Effective Pixels 1,944(H) x 1,104(V)
- Scanning System Progressive
- Min. Illumination 0.5Lux (1/30sec, F2.5, 50IRE), 0.22Lux (1/30sec, F2.5, 30IRE)
- Lens
- Focal length 4.6mm pinhole
- Max. Aperture ratio F2.5
- Angular Field of View H : 71 Degrees / V : 38 Degrees
- Min. Object Distance 0.3m
- Mount Type RJ-12 connected with main unit
- Operational
- Camera Title Off / On (Displayed up to 45 characters)
- Day & Night Auto (Electrical) / Color / B/W / Schedule
- Backlight Compensation Off / BLC / WDR
- Wide Dynamic Range 120dB
- Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
- Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
- Digital Image Stabilization Off / On
- Defog Off / Auto / Manual
- Motion Detection Off / On (4 zones with 4-sided polygon)
- Privacy Masking Off / On (4 zones with 4-sided polygon)
- Gain Control Off / Low / Middle / High
- White Balance ATW / AWC / Manual / Indoor / Outdoor
- Electronic Shutter Speed Minimum / Maximum / Anti flicker (1.2 ~ 1/10,000sec)
- Flip / Mirror Off / On
- Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, Appear / Disappear
- Alarm I/O Input 1ea / Output 1ea
- Alarm Triggers Motion detection, Tampering detection, Alarm input, Video anaytics, Network disconnection
- Alarm Events File upload via FTP and E-Mail, Notification via E-Mail local storage (SD/SDHC/SDXC) or NAS recording at Event, External output
- Network
- Ethernet RJ-45 (10/100BASE-T)
- Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
- Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
- Max. Framerate H.264 : Max. 30fps at all resolutions MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
- 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
- Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
- Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
- Streaming Capability Multiple streaming (Up to 10 profiles)
- IP- IPv4, IPv6
- Protocol TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP,
- SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
- Security HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
- Streaming Method Unicast / Multicast
- Max. User Access 15 users at unicast mode
- Edge Storage micro SD/SDHC/SDXC - motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
- NAS (network attached storage)
- Application Programming Interface ONVIF Profile S, SUNAPI (HTTP API), SVNP 1.2
- Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
- Web Viewer
- Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
- Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19),Google Chrome (Ver. 15~25), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
- Input Voltage / Current PoE (IEEE802.3af), 12V DC
- Power Consumption PoE : Max. 7.5W, 12V DC : Max. 6.5W
- Central Management Software Smart Viewer, SSM
- Demensions (WxHxD) Head : 24.0 x 42.4mm (0.94" x 1.67"), Body : 76.0 x 121.1 x 28.0 (2.99" x 4.77" x 1.1")
- Color / Material Head : Black / Plastic, Body : Ivory / Plastic
- Weight 305g (0.67 lb)
