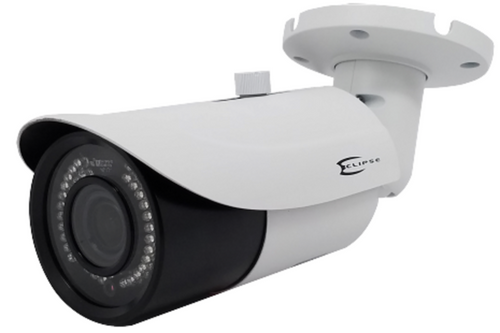

Brand: Eclipse CCTV
SKU: PRO29SM
Dimensions: 4.3" x 11.2"
Power: 12VDC
Transmission: Coax
Camera
Sensor: 1/2.8", 2 Megapixel, CMOS
Lens: 2.8mm ~ 12mm Motorized
Video System: NTSC/PAL
Min. Illumination: Color: 0.001 lux@F1.2, AGC on; B/W: 0 lux (IR on)
S/N: >52dB (AGC off)
Day/Night: IR-cut filter with auto switch (ICR)
IR Range: Up to 50m (164ft)
Infrared Cut: Removable cut filter, automatic
Video
Video Format: AHD, TVI, CVI, or CVBS (selectable)
Resolution: 1920x1080
Frame Rate: 30fps (Real Time)
OSD: Yes (Control Over Coax)
Electronic Shutter: Auto: 1/60s ~ 1/100000s
Video Settings
Automatic Gain Control: Yes
Wide Dynamic Range: 120dB
Back Light Compensation: Yes
Auto White Balance: Yes
Digital Noise Reduction: Yes
Global Exposure: Yes
Central Exposure: Yes
Sharpness: Yes
Smart IR: Yes
Front Light Compensation: Yes
Supported Languages: 13 different languages
General
Power: 12VDC (+/- 10%), IR off: <1W; IR on: <5W
Working Environment: -20°C ~ 50°C
Humidity 10% ~ 90% RH (non-condensing)
Ingress Protection: IP66
Dimensions: ∅109mm x 284mm (4.3" x 11.2")
Weight: 1.07kg (2.35lbs)
