Lightweight, Weather-Resistant Thermal Imaging Monocular Designed to be Durable

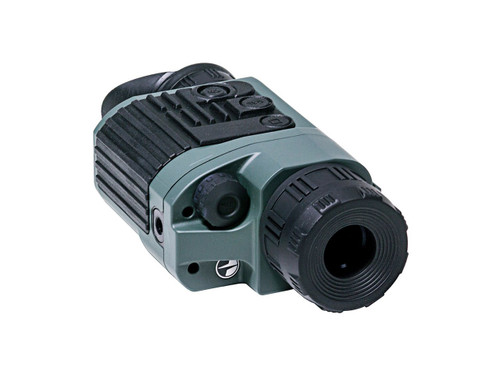

The Pulsar Quantum LD19A Thermal Imaging Monocular was designed to capture "white hot" and "black hot" heat signatures at a distance of more than 500 yards. With a thermal core resolution of 384x288, which is 20% more than standard, this monocular has the ability to capture maximum thermal energy efficiently for a more detailed image.
With a 9 hertz frame rate and a 2x digital zoom, the LD19A monocular can perform well in a variety of conditions. With lightweight glass-nylon composite housing, the LD19A weighs in at just under a pound and is resistant to wet weather conditions. The iris-style objective lens eliminates the need for a lens cover which could be lost or get in the way.
To make the monocular even more versatile, it operates in three different modes (city, forest, and identification) as well as three different calibration modes for image stability (manual, automatic, and semi-automatic). It can also be up to you how you choose to power your monocular as it can take four lithium AA batteries or run on the EPS3 or EPS6 battery packs by Pulsar, giving you two different power configurations.
The Pulsar Quantum LD19A Thermal Imaging Monocular was engineered specifically with law enforcement uses in mind, but it can also be used for a number of other applications, including hunting.
SKU: PL77326
In The Box
Pulsar Quantum LD19A Thermal Imaging Monocular
User's Guide
Special Feature: This monocular offers a thermal core resolution of 384 x 288, 20% more than standard, ensuring that maximum thermal energy is captured efficiently for a more detailed image.
Dimensions: 7.0" x 3.38" x 2.28"
Power: 4x AA Batteries or Pulsar Battery Packs
Transmission: Magnification: 1-2x
Service: No monthly fee
Frame Rate: 9Hz
Microbolometer Resolution: 384x288 pixels
Sensor Response: LWIR
Spectral Sensitivity: 7.7-13.2m
Pixel Pitch: 25m
Display Type: LCD Display
Display Resolution: 640x480
Video output: PAL/NTSC
Pin type of video input/output: Jack 3.5 mm
Operation Modes: city, forest, identification
Defective Pixel repair option: Yes
Magnification: 1-2x
Digital Zoom: 2x
Lens Diameter: 16mm
Lens Focus: 19mm
Relative Aperture: 1:1.2
Field of View: Horizontal - 26.8, Vertical - 20.8
Minimum Focusing Distance: 3m
Eye Relief: 20mm
Exit Pupil: 5mm
Diopter Adjustment: ± 5
Focusing type of distance: Internal
Range of Detection: 470/515 m / yd
Power Supply: V - 4 ÷ 6
Battery Type: 4xAA
Battery Life: 5.5 hours
External power supply DC - 8.4 ÷ 15
Lens Material: Germanium
Body Material: Glass-Nylon Composite
Tripod Mount: 2x1/4"
Type of mount for additional accessories: Weaver
Operating Temperature: -15°C to 50°C / 5 to 122
Degree of Protection: IPX4
Calibration: Manual, Automatic, Semi-auto
Dimensions: 180x86x58 mm
Weight (without batteries): 11.3 oz
