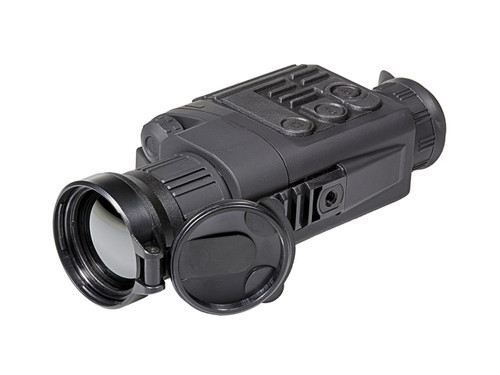

Thermal Imaging Monocular Able to Spot Targets Even in Low Visibility
Featuring a 50 Hz frame rate, which is higher than most comparable products on the market, the Pulsar Quantum XD50A Thermal Imaging Monocular is engineered to track targets quickly and efficiently in all weather and lighting conditions. The 640x480 LCD display allows you to view your target range in high resolution and maintains consistent imaging for even fast-moving objects. The thermal core resolution of 384x288 is able to capture maximum thermal energy for a more detailed image. With the ability to view through vision obstructions like smoke and fog, the Pulsar Quantum XD50A Thermal Imaging Monocular will ensure that you don't miss anything.
Long distance viewing is made possible by a 2x digital zoom with magnification from 2.5x to 5x, depending on need. This pulsar scope operates in a variety of helpful modes, including three operating modes that are designed to deliver enhanced contrast and improved rendering of hot-object details. Modes include city, forest, and identification operations. Calibration modes of the pulsar scope include automatic, semi-automatic, and manual, allowing you to choose the best method for your use.
SKU: PL77329
In The Box
XD50A Thermal Imaging Monocular
Special Feature: This monocular offers long distance viewing with 2x digital zoom and a detection range of 1250 yards for a man-sized target.
Dimensions: 8.14" x 3.38" x 2.32"
Power: 4x AA Batteries or Pulsar Battery Packs
Transmission: Magnification: 2.5 - 5x
Service: No monthly fee
Frame Rate: 50Hz
Microbolometer Resolution: 384x288 pixels
Sensor Response: LWIR
Spectral Sensitivity: 7.7 - 13.2m
Pixel Pitch: 25m
Display Type: LCD Display
Display Resolution: 640x480
Video Output: PAL/NTSC
Pin type of video input/output: Jack 3.5 mm
Operation Modes: city, forest, identification
Defective Pixel repair option: Yes
Magnification: 2.5 - 5x
Digital Zoom: 2x
Lens Diameter: 42mm
Lens Focus: 50mm
Relative Aperture: 1:1.2
Field of View: Horizontal: 11, Vertical: 11 x 8.3br>Minimum Focusing Distance: 5m
Eye Relief: 20mm
Exit Pupil: 5mm
Diopter Adjustment: ± 5
Focusing type of distance: Internal
Range of detection: 1100/1200 m / yd
Power Supply: 4 ÷ 6 V
Battery Type: 4xAA
Battery Life: 5.5 hours
External Power Supply: DC 8.4 ÷ 15
Lens Material: Germanium
Body Material: Glass-Nylon Composite
Tripod Mount: 2x1/4"
Type of mount for additional accessories: Weaver
Operating Temperature: -25°C to 50°C / -13 to 122
Degree of Protection: IPX4
Calibration: manual, automatic, semi-auto
Dimensions: 207x86x59 mm
Weight (without batteries): 15.2 oz
