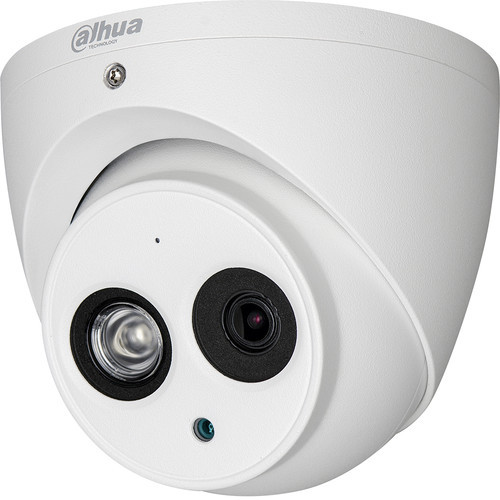

The 2MP IR 2.8 mm HDCVI Eyeball Camera features a 2MP CMOS sensor and a 2.8mm fixed lens. It captures video at resolutions up to 1920 x 1080 at 30 fps in a 106° field of view. The camera uses Starlight technology to deliver color video in low-light conditions down to 0.005 lux and it has an IR cut filter and IR LEDs for night vision with an effective range of up to 164'. The HDCVI technology simultaneously transmits video, power, and data over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms. The camera is equipped with a built-in microphone for capturing audio, which is transmitted over coax along with the video signals. Designed for outdoor use, the camera is housed in an IP67-rated weather-resistant enclosure.
Brand: Dahua
SKU: A21CG02
In The Box
2MP IR 2.8 mm HDCVI Eyeball Camera
Dimensions: 4.17 x 3.69 inches
Power: 12 VDC ±30%
Transmission: BNC, Coax
Service: No monthly fee
Camera
Sensor: 1/2.8" CMOS
Effective Pixels: 1920 x 1280, 2 MP
Scanning System: Progressive
Electronic Shutter Speed: 1/100,000 to 1/30 Second
Minimum Illumination: Color: 0.005 Lux at f/1.6 (30 IRE), 0 Lux with IR On
S/N Ratio: >65 dB
IR Range: 164.04' / 50 m
IR Control: Auto, Manual
IR LEDs: 1
Lens
Lens Type: Fixed Lens, Fixed Iris
Mount Type: Board-In
Focal Length: 2.8mm
Maximum Aperture: f/1.6
Horizontal Angle of View: 106°
Close Focus Distance: 23.6" / 600 mm
Camera Adjustment Range
Horizontal: 0 to 360°
Vertical: 0 to 78°
Rotation: 0 to 360°
Video
Resolution: 1920 x 1080
Frame Rate: 30 fps at 1920 x 1080, 30/60 fps at 1280 x 720
Output: 1 x BNC HD-CVI Channel, Switchable to CVBS, AHD, or HD-TVI
Day/Night: Auto (IR Cut Filter), Manual
BLC Modes: BLC, HLC, DWDR
WDR: Digital
Gain Control: Automatic (AGC)
Noise Reduction: 2D
White Balance: Auto, Manual
Smart IR: Auto, Manual
Audio
Interface: Built-In Microphone
Electrical
Power Supply: 12 VDC ±30%
Maximum Power Consumption: 4.7 W
Environmental
Operating/Storage Temperature: -40 to 140°F / -40 to 60° C
Operating/Storage Humidity: 90% RH Maximum
Ingress Protection: IP67
Construction
Casing: Aluminum
Dimensions: 106.0 x 93.7 mm
Weight: 0.97 lb / 0.44 kg
