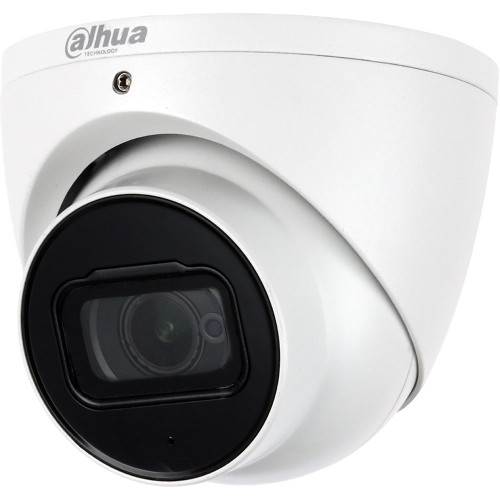

The 8MP 2.8mm HDCVI IR Eyeball Camera uses a 1/2" progressive scan CMOS sensor to transmit up to 4K UHD resolution video at 15 fps. Two IR LEDs provide up to 164' of night vision. The 2.8mm fixed lens delivers an 87° horizontal field of view. This camera supports HD-CVI, TVI, AHD, and CVBS formats making the camera compatible with not only HDCVI DVRs but also most existing HD/SD DVRs.
The camera is equipped with a built-in microphone and an RCA audio input. It uses unique audio processing and transmission technology that eliminates noise to best duplicate source audio, guaranteeing high-quality and highly effective audio information. This camera is housed in an IP67-rated aluminum enclosure that is suitable for outdoor use.
Brand: Dahua
SKU: A82AG52
In The Box
8MP 2.8mm HDCVI IR Eyeball Camera
Dimensions: 4.17 x 3.90 inches
Power: 12 VDC ± 30%
Transmission: BNC, Coax
Service: No monthly fee
Camera
Image Sensor: 1/2" Progressive Scan CMOS Sensor
Effective Pixels (H x V): 3840 x 2160
Electronic Shutter Speed: 1/100,000 to 1/3 Seconds
Minimum Illumination: Color: 0.005 lux at f/1.6, 30 IRE, B&W: 0 lux with IR
S/N Ratio: >65 dB
IR Range: 164' / 50 m
IR Control: On/Off Control (Auto, Manual)
Number of IR LEDs: 2
Lens
Lens Type: Fixed Lens, Fixed iris
Mount Type: Board-In
Focal Length: 2.8mm
Maximum Aperture: f/1.6
Field of View: Horizontal: 87°
Focus Control: Auto, Manual
Close Focus Distance: 70.87" / 1800 mm
Camera Adjustment Range
Angle Adjustment:
Horizontal: 0 to 360°
Vertical: 0 to 70°
Rotation: 0 to 360°
Video
Maximum Resolution: 3840 x 2160
Frame Rate:
HD-CVI: 8 MP at 15 fps, 6 MP at 20 fps, 4 MP at 30 fps
HD-TVI: 5 MP at 20 fps, 4 MP at 30 fps
AHD: 5 MP at 20 fps, 4 MP at 30 fps
CVBS: 960H
Video Output: 1 x HD-CVI (BNC, 4K UHD), 1 x CVBS (BNC, Switchable)
Day/Night: Auto IR Cut Filter/Manual
OSD Menu: Multi-Language
Backlight Compensation: BLC, HLC, True WDR
WDR: 120 dB
Automatic Gain Control: Supported
Noise Reduction: 2D-DNR, 3D-DNR
White Balance: Auto, Manual
Smart IR: Auto, Manual
Interface
Audio: Built-In Microphone, 1 x Audio Input (RCA)
General
Power Supply: 12 VDC, ±30%
Power Consumption: Maximum 8 W at 12 VDC (IR On)
Operating Conditions: -22 to 140° / -30 to 360°C, Less than 90% RH
Storage Conditions: -22 to 140° / -30 to 360°C, Less than 90% RH
IP Rating: IP67
Casing: Aluminum
Dimensions (Diam. x H): 106 x 99.2 mm
Weight: 1.1 lb / 0.5 kg
