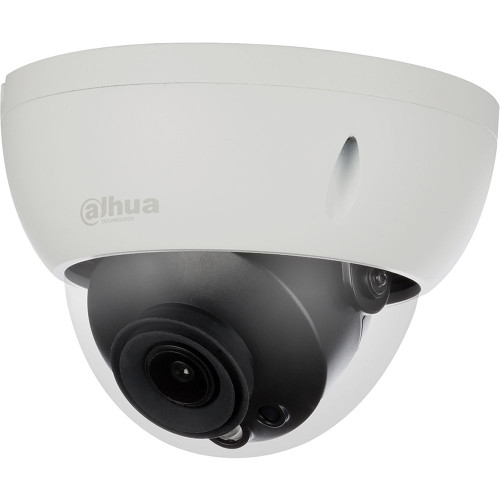

Featuring an 8MP CMOS sensor and a 2.8mm fixed lens, this 8MP 2.8mm IR HDCVI Dome Camera from Dahua Technology captures video at resolutions up to 3840 x 2160 at 15 fps in a 110.8° field of view. It uses Starlight technology to deliver color video in low light conditions down to 0.005 lux and has an IR cut filter and an IR LED for 0 lux night vision as far as 98'. For applications with both bright and low lighting conditions that change quickly, True WDR of 120 dB optimizes both the bright and dark areas of a scene at the same time to provide usable video.
The camera is equipped with an RCA audio input for capturing audio with a separately available microphone. The audio signals are transmitted over coax along with the video signals. The camera complies with the IK10 Vandal Resistance impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.) Designed for use in vandal-prone outdoor locations, the camera is housed in an IP67-rated enclosure.
Brand: Dahua
SKU: A82AM52
In The Box
8MP 2.8mm IR HDCVI Dome Camera
Dimensions: 4.80 x 3.50 inches
Power: 12 VDC ± 30%
Transmission: BNC, Coax
Service: No monthly fee
Camera
Sensor: 1/1.8" CMOS
Effective Pixels: 3840 x 2160, 8 MP
Scanning System: Progressive
Electronic Shutter Speed: 1/100,000 to 1/3 Second
Minimum Illumination: Color: 0.005 Lux at f/1.6 (30 IRE), 0 Lux with IR On
S/N Ratio: >65 dB
IR Range: 98.43' / 30 m
IR Control: Auto, Manual
IR LEDs: 1
Lens
Lens Type: Fixed Lens, Fixed Iris
Mount Type: Board-In
Focal Length: 2.8mm
Maximum Aperture: f/1.6
Horizontal Angle of View: 110.8°
Focus Control: Auto, Manual
Close Focus Distance: 70.87" / 1800 mm
Camera Adjustment Range
Horizontal: 0 to 355°
Vertical: 0 to 75°
Rotation: 0 to 355°
Video
Resolution: 3840 x 2160 (8 MP)
Frame Rate:
HD-CVI: 15 fps at 8 MP, 20 fps at 6 MP, 30 fps at 4 MP
CVBS: 960H
Output: 1 x BNC HD-CVI Channel, Switchable to CVBS
Day/Night: Auto (IR Cut Filter), Manual
OSD Menu: Multi-Language
BLC Modes: BLC, HLC, True WDR
WDR: 120 dB
Gain Control: Automatic (AGC)
Noise Reduction: 2D, 3D
White Balance: Auto, Manual
Smart IR: Auto, Manual
Audio
Interface: 1 x RCA, Input
Electrical
Power Supply: 12 VDC ±30%
Maximum Power Consumption: 7 W
Environmental
Operating/Storage Temperature: -22 to 140°F / -30 to 60° C
Operating/Storage Humidity: 90% RH Maximum
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Aluminum
Dimensions: 122.0 x 88.9 mm
Weight: 0.9 lb / 0.41 kg
