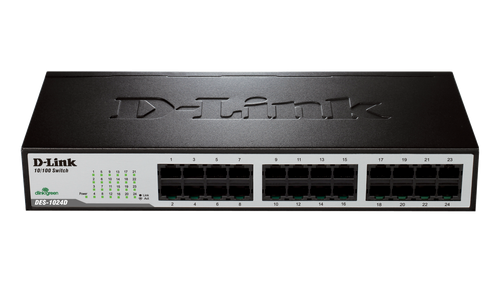

The 24-Port Fast Ethernet Switch from D-Link allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. With the DES-1024D, you can easily expand your network by adding more computers or devices with speeds up to 200 Mbps per port in full-duplex mode. Every port on the switch is autosensing MDI/MDI-X, so you won't have to worry about switching between standard Ethernet and crossover cables when configuring your network.
The switch provides 802.1p priority queues for QoS or Quality of Service, allowing users to run bandwidth-sensitive applications such as multimedia and VoIP Internet telephone without data flow bottlenecks that can degrade the quality of the network connection. It supports IEEE802.3az EEE which enables the switch to reduce power usage when the switch is at low utilization, allowing users to save on power consumption and costs. During these periods of low utilization, the switches can enter a low-power state and use up less power than regular operations. Equipped with a comprehensive LED display, you can monitor the status and activity of every port at a glance. The switch features a 1U rackmount form factor, making it an excellent addition to your network.
Brand: D-Link
SKU: DES1024D
In The Box
D-Link 24-Port 10/100 Mbps Ethernet Rackmount SwitchPower Cord
Special Feature: The 802.3x flow control on each port minimizes dropped packets when the port's receiving buffer is full.
Dimensions: 11" x 1.7" x 7.1"
Power: 100-240V AC 50/60 Hz internal universalpower supply
Transmission: 24x 10/100 Mbps Auto-Uplink RJ-45 Ports
Storage: N/A
Service: No monthly fee
Data Transfer Rates
Fast Ethernet: 100 Mbps Half-Duplex / 200 Mbps Full-Duplex
Ethernet: 10 Mbps Half-Duplex / 20 Mbps Full-Duplex
Switching Fabric
4.8 Gbps
Packet Filtering/Forwarding Rate
148,800 pps for 100M
14,880 pps for 10M
LED Indicators
Per port: Link/Activity
Per device: Power
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
Network Cables
10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Port Standards and Functions
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
IEEE 802.3az EEE function
General
Hardware version: G1
Number of 10/100BASE-T (RJ45) ports: 24
Number of Ports: 24 10/100Mbps Fast Ethernet ports
Transmission Method: Store-and-forward
MAC Address Table: 8K entries per device
MAC Address Learning: Automatic update
Topology: Star
Protocol: CSMA/CD
Weight: 2.51 lbs (1.14 kg)
Standard Power Consumption: 1.17 Watts
Maximum Power Consumption: 2.8 Watts
Maximum Heat Dissipation: 9.5536 BTU/h
MTBF: 810,880 hours
Temperature
Operating: 32°F to 104°F (0°C to 40°C)
Storage: 14°F to 158°F (-10°C to 70°C)
Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing
