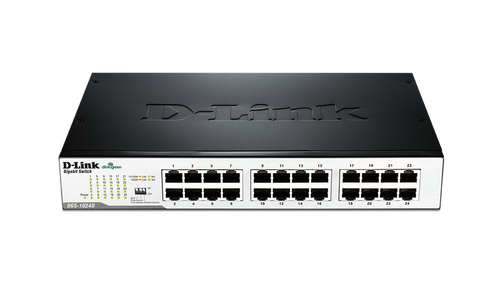

The DGS-1024D is a 24-Port Gigabit Desktop/Rackmount Switch that increases the speed of your network server and backbone connections. All ports auto-sense the network speed of the computers and hubs to run at either 10Mbps or 100Mbps. The ports also auto-negotiate between full and half duplex and support IEEE 802.3x Flow Control that allows your servers to directly connect to this switch for fast, reliable data transfer. An expansion is easy through an MDI uplink port. You cascade several switches together through this port to get more ports. The versatile and compact 1RU height design of the DGS-1024D enables the device to be rack-mounted in a standard 19-inch rack while conserving valuable rack space.
Brand: D-Link
SKU: DGS1024D
In The Box
24-Port Gigabit Switch
Power Cable
Mounting Kit
Quick Install Guide
Special Feature: Packed with features, this 24-Port Gigabit Desktop Switch is designed for small offices and larger workgroups to take advantage of Gigabit Ethernet speeds while reducing energy consumption and minimizing noise output.
Dimensions: 11.02" x 7.09" x 1.73"
Power: Internal universal power supply 100~240 V AC; 50 to 60 Hz, 0.3 A max
Transmission: 24x 10/100/1000 Gigabit ports
Storage: N/A
Service: No monthly fee
Technical
Auto MDI/MDI-X crossover for all ports
Store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast
Protocol: CSMA/CD
Media Interface Exchange: Auto MDI/MDI-X adjustment for all ports
Transmission Method: Store-and-forward
MAC Address Table: 8K entries per device
MAC Address Learning: Automatic update
RAM Buffer: 512 KB per device
Acoustics: 0 dB
MTBF:
DGS-1016D: 828,109 hours
DGS-1024D: 642,569 hours
Ethernet speeds
IEEE 802.3x Flow Control
Supports 9,600Bytes Jumbo Frames
Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
Supports Cable Diagnostics Function
RoHS compliant
Plug-and-play installation
Number of Ports
DGS-1016D: 16 Gigabit ports
DGS-1024D: 24 Gigabit ports
Switching Fabric
DGS-1016D: 32 Gbps switching fabric
DGS-1024D: 48 Gbps switching fabric
Data Transfer Rates
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)
Network Cables
10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Packet Filtering/Forwarding Rates
(half duplex)
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
Standards
IEEE 802.3 10BASE-T Ethernet (twisted pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS (4 queues, strict mode)
Power Consumption
DGS-1016D: Standby: 3.8 watts, Maximum: 11.7 watts
DGS-1024D: Standby: 5.1 watts, Maximum: 17.1 watts
Heat Dissipation
DGS-1016D: Standby: 12.96 BTU/h, Maximum: 39.9 BTU/h
DGS-1024D: Standby: 17.39 BTU/h, Maximum: 58.31 BTU/h
LED Indicators
Per port: Link/Activity/Speed
Per device: Power
Environmental
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -10° to 70° C (14° to 158° F)
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing
