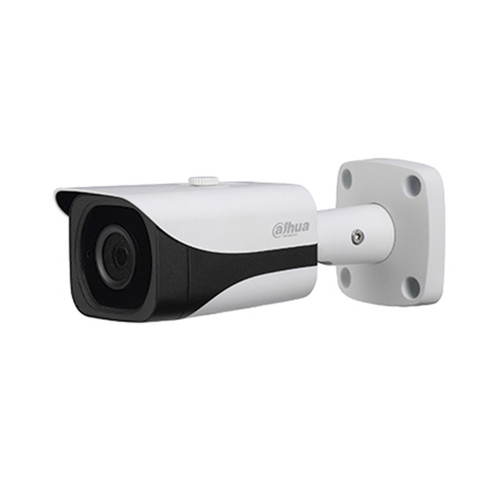

The A21BB02 2MP HDCVI Fixed Bullet Camera features a 2.8mm lens that has a 51.2° horizontal field of view and a 2MP 1/2.9" CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. The IR cut filter and built-in IR LEDs allow it to produce clear images of objects in complete darkness from up to 130' away. Its wide dynamic range and automatic gain control help the camera produce accurate images in varying lighting conditions. The camera is housed in an IP67-rated enclosure for protection against dust and water, making it perfect for outdoor use.
Brand: Dahua
SKU: A21BB02
In The Box
2MP HDCVI Fixed Bullet Camera
Dimensions: 7.1 x 2.8 x 2.8 inches
Power: 12V DC ±25%
Transmission: BNC, Coax
Service: No monthly fee
Camera
Image Sensor: 1/2.9-in. CMOS
Effective Pixels: 1920(H) x 1080(V), 2 MP
Scanning System: Progressive
Electronic Shutter Speed: 1/30 s to 1/100000 s
Minimum Illumination: 0.01 Lux at F2.0; 0 Lux (with IR on)
S/N Ratio: More than 65 dB
IR Distance: Up to 40 m (130 ft)
IR On/Off: Control Auto, Manual
IR LEDs: Two (2)
Lens
Lens Type: Fixed Lens / Fixed Iris
Mount Type: Board-in
Focal Length: 2.8 mm
Max Aperture: F2.1
Angle of View: 106°
Close Focus Distance: 500 m (19.7 in.)
Pan / Tilt / Rotation:
Range Pan: 0° to 360°
Tilt: 0° to 90°
Rotation: 0° to 360°
Video
Resolution: 1080p (1920 × 1080)
Frame Rate: 1080p @ 30 fps; 720p @ 30/60 fps
Video Output:
One (1) BNC HDCVI High-definition Channel
One (1) BNC CVBS, AHD or TVI Channel, switchable
Day/Night: Auto (ICR), Manual
OSD Menu: Multi-language
BLC Mode: BLC, HLC, DWDR
WDR: Digital WDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto, Manual
Smart IR: Auto, Manual
Video Transmission
RG-59/U Coax: 720p: 800 m (2624.67 ft); 1080p: 500 m (1640.42 ft)
RG-6/U Coax: 720p: 1200 m (3937.01 ft); 1080p: 800 m (2624.67 ft)
CAT 6 UTPL 720p: 450 m (1476.38 ft); (balun required) 1080p: 300 m (984.25 ft)
Electrical
Power Supply: 12 VDC ±25%
Power Consumption: Max 4.6 W (12 VDC with IR on)
Environmental
Operating Conditions: -40to +60° C (-40 to +140° F), Less than 95% RH
Initiate startup above: -40° C (-40° F)
Storage Conditions: -40 to +60° C (-40 to +140° F), Less than 95% RH
Ingress Protection: IP67
Construction
Casing: Aluminium
Dimensions: 180.0 x 70.0 x 70.0 mm
Net Weight: 0.35 kg (0.77 lb)
Gross Weight: 0.44 kg (0.97 lb)
