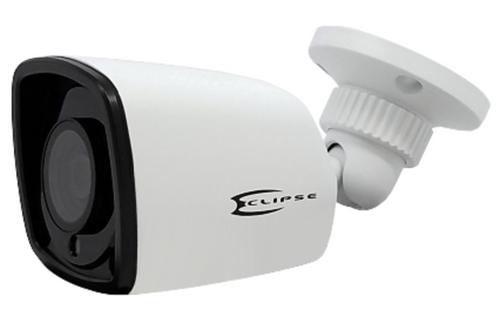

Brand: Eclipse CCTV
SKU: PRO26
Dimensions: 2.75" x 6.14"
Power: 12VDC
Transmission: Coax
Camera
Sensor: 1/2.9", 2 Megapixel, CMOS
Lens: 2.8mm
Video System NTSC/PAL
Min. Illumination: 0 Lux (IR on)
S/N: >52dB (AGC off)
Day/Night: IR-cut filter with auto switch (ICR)
IR Range: Up to 20m (65ft)
Infrared Cut Removable cut filter, automatic
Video
Video Format: AHD, TVI, CVI, or CVBS (selectable)
Resolution: 1920x1080
Frame Rate: 30fps (Real Time)
OSD: Yes (Control Over Coax)
Electronic Shutter Auto: 1/60s ~ 1/100000s
Video settings
Automatic Gain Control: Yes
Wide Dynamic Range: Digital
Back Light Compensation: Yes
Auto White Balance: Yes
Digital Noise Reduction: Yes
Global Exposure: Yes
Central Exposure: Yes
Sharpness: Yes
Smart IR: Yes
Front Light Compensation: Yes
Supported Languages: English, Chinese
General
Power: 12VDC (+/- 10% ), 4W Max.
Working Environment: -20°C ~ 50°C,Humidity = 90% RH (non-condensing)
Ingress Protection: IP66
Dimensions: ∅70mm x 156mm (2.75" x 6.14")
Weight: .32kg (.70lbs)
