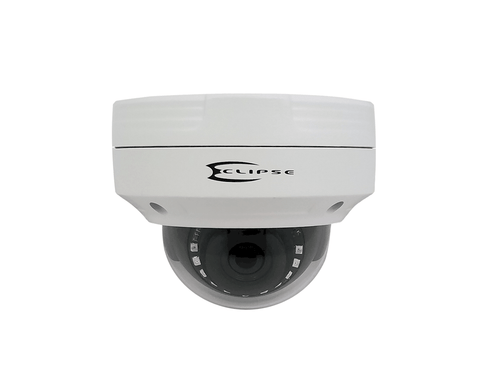

Brand: Eclipse CCTV
SKU: PRO22
Dimensions: 4.57" x 3.59"
Power: 12VDC
Transmission: Coax
Camera
Sensor: 1/2.9", 2 Megapixel, CMOS
Lens: 2.8mm
Video System: NTSC/PAL
Min. Illumination: 0 Lux (IR on)
S/N: >52dB (AGC off)
Day/Night: IR-cut filter with auto switch (ICR)
IR Range: Up to 20m (65ft)
Infrared Cut: Removable cut filter, automatic
Video
Video Format: AHD, TVI, CVI, or CVBS (selectable)
Resolution: 1920x1080
Frame Rate: 30fps (Real Time)
OSD: Yes (Control Over Coax)
Electronic Shutter: Auto: 1/60s ~ 1/100000s
Video Settings
Automatic Gain Control: Yes
Wide Dynamic Range: Digital
Back Light Compensation: Yes
Auto White Balance: Yes
Digital Noise Reduction: Yes
Global Exposure: Yes
Central Exposure: Yes
Sharpness: Yes
Smart IR: Yes
Front Light Compensation: Yes
Supported Languages: English, Chinese
General
Power: 12VDC (+/- 10%), 3W Max.
Working Environment: -20°C ~ 50°C,Humidity = 90% RH (non-condensing)
Ingress Protection: IP66, IK10
Dimensions: ∅116mm x 91mm (4.57" x 3.59")
Weight: .54Kg (1.2lbs)
