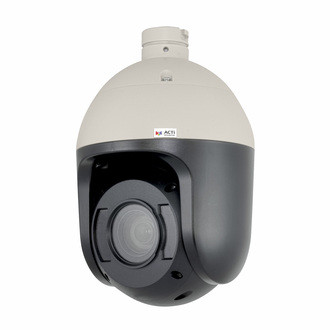

The 2MP Video Analytics Outdoor Speed Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 20x Zoom lens from ACTi features a 1/2.8" progressive scan CMOS sensor and 4.7-94mm varifocal lens. It is equipped with a 2-Megapixel camera that records 60 fps at 1920x1080. With a built-in IR-cut filter and adaptive IR LEDs, the camera can capture clear images in complete darkness for up to 328 ft. With adaptive IR LEDs, the camera automatically adjusts the IR light to focus on the area that it zooms into. This way, the IR beam will be concentrated in one area to narrow down the beam angle and extend the range to cover the zoom-in area. When zooming out, the adaptive IR LED technology will readjust the illumination back to cover the wider area.
The camera supports H.264 and MJPEG compression formats with simultaneous triple streaming. It also supports 360° endless panning and -20 to 200° tilting. The camera offers WDR of up to 145 dB for capturing images under varied lighting conditions. It comes with a built-in microSDHC card slot (card not included) for onboard storage. With the IP66-rated weather-resistant and IK10-rated vandal-proof housing, this camera is suitable for outdoor applications. Additionally, B945 is equipped with a dehumidifier that keeps the internal moisture level low, preventing condensation and quickly dissipating any condensation that forms.
Brand: ACTi
SKU: B945
In The Box
Camera
Power Cord
Screws
Power Adapter or PoE Injector
Universal Converter
Cable Gland
Conduit Gland
3x Ferrite Core
Safety Strap
2x DI/DO Terminal Blocks
Quick Installation Guide
Warranty Card
Special Feature: This weather-resistant and vandal-proof camera is suitable for outdoor applications.
Dimensions: 6.69" x 10.23"
Power: High PoE (IEEE802.3at) 50W / AC 24V 62W (With heater controlled by thermostat)
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1450 TVL
Day / Night: Yes
Low Light Sensitivity: Superior
IR Sensitivity Range: 700-1100nm
Focal Length: Zoom, f4.7-94mm
Aperture: F1.6-F3.5
Horizontal Viewing Angle: 62° - 2.8°
Vertical Viewing Angle: 36.4° - 1.4°
Max. Frame Rate vs. Resolution: 60 fps at 1920x1080, 60 fps at 1280x720, 30 fps at 640x480, 30 fps at 320x240
Image Orientation: Flip, Mirror
Network Protocol & Service: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection
Event Response: Notify control center, Go to PTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: AC 24V, High PoE
Power Consumption: 50 W (PoE, heater, fan and IR on), 62 W (AC, heater, fan and IR on)
Weight: 3064g (6.75lb)
Dimensions: (⌀ x H): 170mm x 260mm (6.69" x 10.23")
