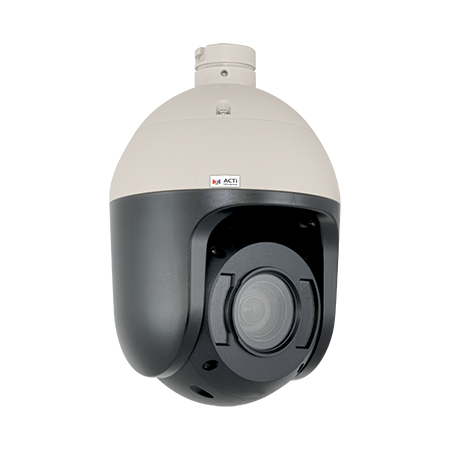

The ACTi I98 is an outdoor speed dome PTZ security camera that uses a 2MP progressive scan CMOS image sensor and captures full HD images at a resolution of up to 1920x1080. A powerful 4.5∼148.5mm lens with an incredible 33x Optical Zoom lets users see far into the distance. This is useful for vertical positioning, giving the user a better than a bird’s eye view of things. This camera uses 0.1 lux technology to see in very dark lighting conditions. Adaptive and very powerful IR LEDs extend night vision out to an incredible 525 ft. Extreme Wide Dynamic Range of 145 dB offers some of the most cutting-edge technology in dealing with strongly contrasted lighting conditions. An SD Card Slot allows for onboard storage and easy file storage management. It is weather-resistant (IP66 rated) and comes with terminal blocks that can be used when an external power adapter and a digital input or output device are required to be connected.
Brand: ACTi
SKU: I98
In The Box
Camera
Power Cord
Screws
Power Adapter or PoE Injector
Universal Converter
Cable Gland
Conduit Gland
3x Ferrite Core
Safety Strap
2x DI/DO Terminal Blocks
Special Feature: This camera is a sturdy one, perfect for recording in inclement weather conditions.
Dimensions: 6.69" x 10.2"
Power: High PoE (IEEE802.3at) 50W / AC 24V 62W (With heater controlled by thermostat)
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1800 TVL
Day / Night: Yes
Low Light Sensitivity: Superior
IR Sensitivity Range: 700-1100nm
Focal Length: Zoom, f4.5-148.5mm
Aperture: F1.6-F5.0
Horizontal Viewing Angle: 69.3° - 3°
Vertical Viewing Angle: 38° - 1.7°
Max. Frame Rate vs. Resolution: 60 fps at 1920x1080, 60 fps at 1280x720, 30 fps at 640x480, 30 fps at 320x240
Image Orientation: Flip, Mirror
Network Protocol & Service: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection
Event Response: Notify control center, Go to PTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: AC 24V, High PoE
Power Consumption: 50 W (PoE, heater, fan and IR on), 62 W (AC, heater, fan and IR on)
Weight: 3112g (6.86lb)
Dimensions: (⌀xH): 170mmx260mm (6.69"x10.23")
