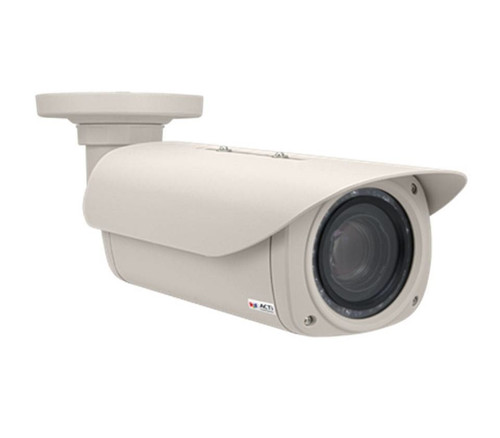

The ACTi I48 comes equipped with a 1/2.8" progressive scan CMOS sensor to capture images at resolutions up to 1920x1080 at 30 fps. With Extreme Wide Dynamic Range of 145 dB, Superior Low Light Sensitivity, and 27 adaptive IR LEDs, this camera is suitable for use in day/night conditions. It also features a mechanical IR-cut filter.
The adaptive IR LEDs allow for automatic adjustment of IR illumination when the camera zooms into an area to narrow down the beam angle and extend the range to cover the zoom-in area. While zooming out, the adaptive IR LED technology will adjust the illumination back to cover the wider area. The Weatherproof IP67- and Vandal Proof Metal Casing IK10-rated camera is fit for use in varying weather conditions as well as high-risk environments. It also supports PoE that eliminates the need for a separate power supply and associated wiring.
Brand: ACTi
SKU: I48
In The Box
Camera
Hex Screwdriver
Bracket Plate
Mounting Screw Kit
Sunshield, Sunshield Screws
Female & Male Conduit and Cable Glands
2x Gland Rubber Ring
Drill Templ.
2 Terminal Blocks: Power; Audio & DI/DO
Quick Install Guide
Special Feature: With a host of features for surveillance, it is perfect for monitoring a home or business.
Dimensions: 4.82" x 4.89" x 14.2"
Power: PoE Class 3 (IEEE802.3af) / 12.6W; DC 12V (adapter not included) / 10.3W
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1800 TVL
Day / Night: Yes
Low Light Sensitivity: Superior
IR Sensitivity Range: 700-1100nm
Focal Length: Zoom, f4.5-148.5mm
Aperture: F1.6-F5.0
Horizontal Viewing Angle: 69.3° - 3°
Vertical Viewing Angle: 38° - 1.7°
Max. Frame Rate vs. Resolution: 60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240
Image Orientation: Rotation
Network Protocol & Service: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection
Event Response: Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption: 12.6 W (PoE)
