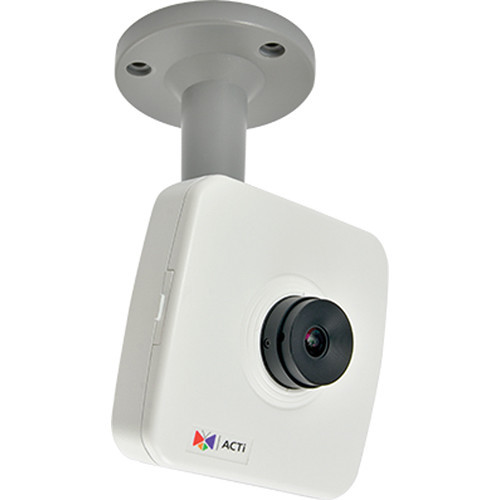

Designed to perform indoor, the ACTi E14 10MP Cube PoE Network Camera offers 1920 x 1080 at 30 fps resolution. Attached from the ceiling, the cube-shaped camera offers a wide dynamic range of 70 dB to record clear footages at different times of the day. Using a progressive scan CMOS sensor, it offers high-quality images with up to eight resolutions and frame speeds. The built-in fixed lens with f3.6mm / F1.8 megapixel takes care of sound image quality. This security camera can simultaneously stream two configurations to ensure that the recordings do not take too much disk space. Equipped with the video motion detection feature, it alerts the control system to act when there is even a slight movement in the camera's field of view.
Brand: ACTi
SKU: E14
In The Box
10MP Cube PoE Network Camera
Bracket
Mounting Screws
Quick Installation Guide
Warranty Card
Special Feature: Privacy mask on 4 configurable regions to protect personal privacy by concealing parts of the image from view with a masked area.
Dimensions: 3.8" x 3.8" x 1.8"
Power: PoE Class 2 (IEEE802.3af) / 3.84W
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1450 TVL
Day / Night: No
Low Light Sensitivity: Standard
IR Sensitivity Range: No
Focal Length : Fixed focal, f3.6mm
Aperture: F1.8
Horizontal Viewing Angle: 99°
Max. Frame Rate vs. Resolution:
7 fps at 3648 x 2736
7 fps at 3648 x 2160
7 fps at 2592 x 1944
7 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
Image Orientation: Flip, Mirror
Protocol: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (3 regions), Sound detection
Event Response: Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: PoE Class 2 (IEEE802.3af)
Power Consumption: 3.84 W (PoE)
Weight: 376g (0.829lb)
Dimensions: (W x H x D): 96mm x 96mm x 45mm (3.8" x 3.8" x 1.8")
