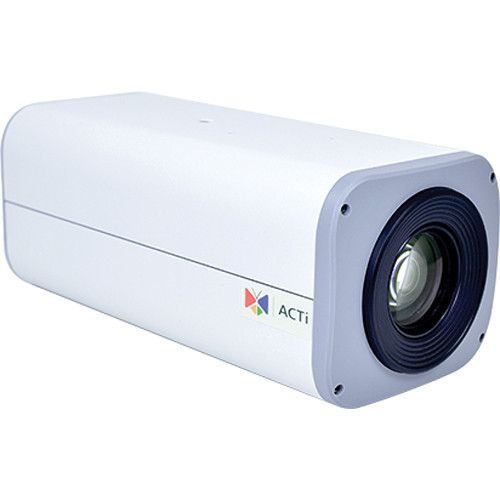

The E210 10MP Zoom Box Network Camera with Day/Night, Basic WDR, 4.3x Zoom lens, f3.1-13.3mm & Heater is capable of recording images up to 1920x1080 at 30 fps and up to 3648x2736 at 7 fps. A 4.3 Optical Zoom offers a reasonable amount of zoom in/out features. This network camera uses H.264 High Profile and MJPEG compression formats for storing images keeping storage manageable. It also supports Visca, Pelco-D, and Pelco-P protocols for PTZ control.
The day/night functionality and a mechanical IR cut filter allow recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.1 lux, the camera switches to night mode and can record clear B&W images up to 0.05 lux. This camera supports 2-way audio communication and features a microSDHC/SDXC memory card slot for local storage.
Brand: ACTi
SKU: E210
In The Box
Camera
Terminal Block for Power
Terminal Block for Audio and DI/DO
Terminal Block for Serial Port
Quick Installation Guide
Warranty Card
Special Feature: This Day & Night camera provides 24-hour surveillance even in low light.
Dimensions: 2.81" x 3.17" x 6.97"
Power: PoE Class 3 (IEEE802.3af) / 12 W (built-in heater on) ; DC 12V
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1450 TVL
Day / Night: Yes
Low Light Sensitivity: Standard
IR Sensitivity Range: No
Focal Length: Zoom, f3.1-13.3mm
Aperture: F1.4-F4.0
Horizontal Viewing Angle: 90.6° - 34.3°
Vertical Viewing Angle: 68.7° - 26.4°
Max. Frame Rate vs. Resolution: 7 fps at 3648 x 2736; 7 fps at 3648 x 2160; 7 fps at 2592 x 1944; 7 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240
Network Protocol & Service: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (3 regions), External device through digital input, Sound detection
Event Response: Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption: 12 W (PoE)
Weight: 661g (1.457lb)
