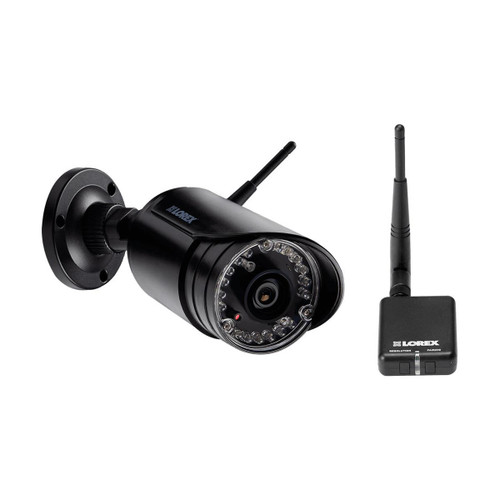

The HD Wireless Camera with BNC Connector for MPX HD DVRs from Lorex features a simplified wireless installation process and is compatible with Lorex MPX digital video recorders. It has a 1.0-Megapixel 3.6mm lens and 80° wide-angle viewing. It is capable of crisp 720p high definition images. Combined with a compatible HD DVR, it will deliver clean, accurate video footage that will help you capture the details you need. A 25 frames-per-second frame rate also ensures smooth on-screen movement. It features exceptional long-range night vision that clearly see up to 135ft in ambient night environments and up to 90ft away in complete darkness.
With the SignalGuard technology, a steady and reliable connection between the wireless camera and matching receiver is maintained. It will even automatically reconnect if the signal strength ever drops too low. The LW3211 features an IP66 weatherproof rating and a vandal-resistant polycarbonate housing. This allows for safe outdoor installation. When outdoors, this camera has a wireless range up to 500 ft away from its receiver thanks to its high-gain antenna.
Brand: Lorex
SKU: PELORLW3211
In The Box
Lorex 720p HD Indoor/Outdoor Day/Night Wireless IR Bullet Camera
Indoor/Outdoor Wireless Receiver
2x Antenna
2x Power Adapters
1x Mounting Kits
Quick Setup Guide
Power: 12V DC 500mA +/-10%
Transmission: BNC Video
Storage: Dependent on DVR
Camera
Image Sensor: 1/3" Color CMOS Image Sensor
Supported Resolution: 720p (1280×720) up to 25fps
Effective Pixels: H: 1280 V: 720
Minimum Illumination: 1 Lux without IR, 0 Lux with IR
AGC: Auto
AES Speed: 1/60 (1/50) ~ 1/62,500
IR LEDs: 18 pieces
Night Vision Range: 135ft (41m) / 90ft (27m)
Environmental Rating: IP66 (Indoor / Outdoor)
Lens: 3.6mm F2.0
Viewing Angle (Horizontal): 78°
Power Consumption: Max. 400mA
Power Supply: 12V DC 500mA ±10%
Operating Temperature: 14 ~ 122°F / -10 ~ 50°C
Receiver/Monitor
Receiving Sensitivity: -88 dBm
Supported Resolutions: 720p (1280x720) up to 25fps
Termination: BNC Video
Image Compression: H.264 CVI
Power Consumption: Max. 250mA
Power Supply: 12V DC 500mA ±10%
Environmental Rating: IP66
OperatingTemperature: 50 ~ 122°F / 10 ~ 50°C
Dimensions (WxDxH): 1.8x2.8x3.9 inches (with antenna)
General
Transmission Frequency: 2.400GHz ~ 2.480 GHz
Transmission Power: 16dBm
Data Rate: 4 Mbps
Unobstructed Wireless Range: 500ft outdoor / 165ft indoor
Spread Spectrum: FHSS
Modulation: GFSK
Operating Humidity: < 85%
