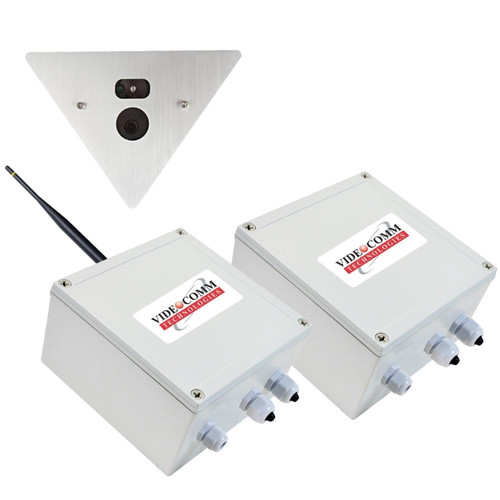

The EV-58307 5.8GHz 802.11a/n Wireless Vandal Proof IP Corner Mount Elevator Video System is a point-to-point/point-to-multipoint digital video link that allows you to surveil elevators up to 200 floors away. It features IEEE 802.11a/n compliance and 300 Mb/s throughput. This all-weather video network bridge can be used to identify, monitor, and record elevator goings-on deterring vandalism and unwanted visitors.
The signal strength LED indicators of the EV-58307 allows quick antenna alignment and its IP-67 rated construction can be used in all types of weather environments. The system is designed for short-to-medium range multi-camera mega-pixel applications and is compatible with ONVIF standards. Connection hardware is included and the system does not require a traveling cable or a connection to the elevator mechanics.
Brand: Videocomm Technologies
SKU: EV-58307
In The Box
Elevator Security Camera
Elevator Tx & Rx
2x Antennas
Connecting Cable
2x Power Supplies
Two Mounting Brackets
Owner's Manual
Special Feature: This EV-58307 from VideoComm Technologies is the best solution for facility and property managers to monitor their assets and minimize liabilities.
Dimensions: Camera: 7.4" x 5.5" x 1.7", Tx & Rx: 7" x 7" x 4", Antenna: 7.8" x 5.15"
Power: Power Supplies Included: 2x 12VDC UL-Listed Power Supplies
Transmission: Operating Frequency: 5.15 to 5.35 GHz and 5.725 to 5.850 GHz Adjustable Bandwidth: 5, 10, and 40 MHz
Service: No monthly fee
Operating Frequency: 5.185-5.825GHz OFDM
Security Format: AES 128 Bit Encrypted Data System + Hidden SSID
On-Board LED Indicators: RSSI, Power, Lan 1 / 2, WLAN
Range & Elevation (Line of Sight): Up to 200 Floors
Camera Type: 1/4IN Color CMOS Sensor
Resolution: Camera 1.3MP @ 30fps (1280 x 1024)
Camera Lens Type: 2.8mm Fixed 1-MegaPixel (720P) Lens with 92° Viewing Angle
Camera SYNC / White Balance: Automatic @ 48dB S/N Ratio
Camera Minimum Illumination: 0.1Lux @ F1.2
Camera IR Range: Up to 30 Feet IR Array
Power Supplies Included: 1x 24VDC UL-Approved PoE Injectors / 1x 12VDC 1-AMP
Camera Power Connector: 2.1mm DC Jack
Programming Software: Embedded - Dip-Switch Selectable
Camera Operating Voltage: 12 VDC ( 48VDC to 12VDC splitter included #PS-4812PoE )
Tx & Rx Operating Voltage: 24VDC PoE
Camera Current Consumption: 130mA @ 12VDC (Not Direct PoE without included DC Splitter)
Tx & Rx Current Consumption: 3 Watts @ 24VDC PoE
Camera Construction: Vandal Resistant Corner-Mount Aluminum Design
Tx & Rx Construction IP-67 Rated All-Weather Design
Camera Weight: 800g (1.8lbs)
Tx & Rx Weight: 31oz ( 880g ) each
Camera Mounting Bracket: Corner Mount Only
Tx & Rx Mounting Brackets: Universal Stainless Steel Wall / Pole Mount
Operating Temperature Range: -40°F to +170°F (-40°C to 77°C)
Note: Compatible with all Network IP Products - Network Cable Not included
FCC / IC Approved: Yes
