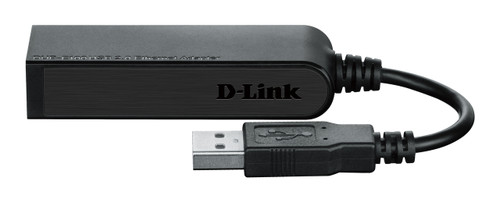

The D-Link DUB-E100 USB 2.0 Fast Ethernet Adapter is a quick and easy way to add 10/100 Mbps Ethernet to your home computer. It is specifically designed to plug into an available Universal Serial Bus (USB) port for Windows/MAC/Linux desktop and notebook PCs. You can also plug in the adapter into a standard USB 1.1 or 2.0 port and connect a standard CAT5 networking cable into the standard RJ-45 connection. As a USB device, the DUB-E100 eliminates the need to use an ISA, PCI, or PC Card slot to add LAN connectivity to a PC or laptop, representing the simplest way to connect your computer to an Ethernet-based network.
The DUB-E100 supports USB energy saving suspend and resume function to minimize power consumption, which is especially useful for laptop users. Power is provided directly by the USB bus, eliminating the need for an external AC power adapter. For extra convenience, the USB connector on the DUB-E100 can be folded into the body. This compact and portable design makes it easy to fit the unit in a laptop bag.
Brand: D-Link
SKU: DUBE100
In The Box
USB 2.0 Fast Ethernet Adapter
CD with Driver and Manual
Quick Installation Guide
Special Feature: Extend the transfer speed of earlier USB Fast Ethernet adapters to true 10/100 Mbps connectivity with the USB 2.0 Fast Ethernet Adapter by D-Link.
Dimensions: 2.87" x 0.84" x 0.79"
Power: Bus Powered 0.5 A, 5VDC
Transmission: 1x USBType A connector; 1x RJ-45 (10/100 MbpsDual-Speed)
Storage: N/A
Service: No monthly fee
General
USB Specification Version 2.0
USB Specification Version 1.1
USB Specification Version 1.0
OHCI (Open Host Controller Interface)
EHCI (Enhanced Host Controller Interface)
IEEE 802.3 Ethernet
IEEE 802.3u 100 BASE-T, TX and T4 compatible
Supports suspended mode and remote wake-up
Embedded 7K * 16 bit SRAM Buffer
Supports full and half duplex in Fast Ethernet
Connectivity
Up to 127 devices by cascading multiple hubs
Diagnostic LED's
Power/Link
Tx/Rx Traffic
Compatible Operating Systems
Microsoft Windows XP, Me, 2000, 98SE with USB Support
Ports/Connector
One USB Type "A" Connector
One RJ-45 (10/100 Mbps Dual-Speed)
Power Requirements
Bus Powered - 2.5 W, 0.5 A @ 3.3 VDC (+ or - .3 VDC )
Power Consumption
150 mA @ 3.3 VDC
Temperature
0°C to 55°C
Storage Temperature
-20°C to 70°C, non-condensing
Humidity
5% to 95%, non-condensing
Compliance
CE / FCC Class B / VCCI / UL
