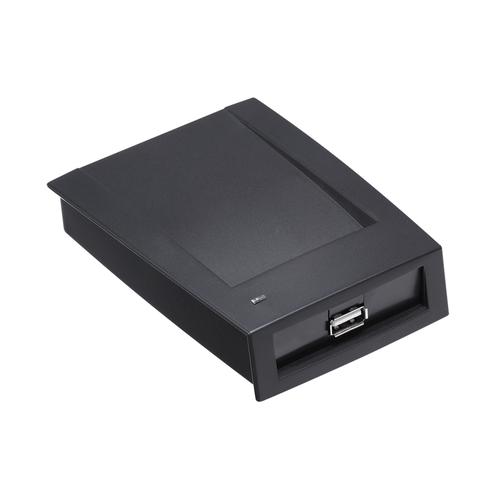

The DHI-ASM100 Card Enrollment Reader from Dahua Technology is designed to read 13.56 MHz MIFARE contactless smart cards. It has a 1.18-2.36" card reading range and is USB-powered. It features a 32-bit processor, blue backlit LCD and, audible buzzer. With plug-and-play operation, there is no driver installation needed.
Brand: Dahua
SKU: DHI-ASM100
In The Box
DHI-ASM100 MIFARE Card Reader and Writer
Special Feature: Designed to read MIFARE contactless smart cards
Dimensions: 4.13 x 2.95 x 0.79 inches
Power: 5VDC/100mA
Transmission: USB to PC
Storage: N/A
Service: No monthly fee
System
Main Processor: 32 Bit
Read
Read Format: 13.56MHz Range: 1.18 to 2.36" / 30 to 60 mm
Interface
Communication: USB to PC
General
LCD Display: Blue backlight
Beep Tone: Buzzer
Power Supply: 5VDC/100mA
Working Environment: -30°C-+60°C
Working Humidity: 95%
Dimension(WxDxH): 105mm*75mm*20mm
Weight: 0.18Kg
Certifications
EN 60950:2006+A2:2013
UL 60950-1
CAN/CSA C22.2 No. 60950-1-07
FCC CFR 47 Part 15 subpart B
EN 55032:2015
EN 55024:2010+A1:2015
EN 50130-4:2011+A1:2014
EN 6100-3-2:2014
EN 6100-3-3:2013
