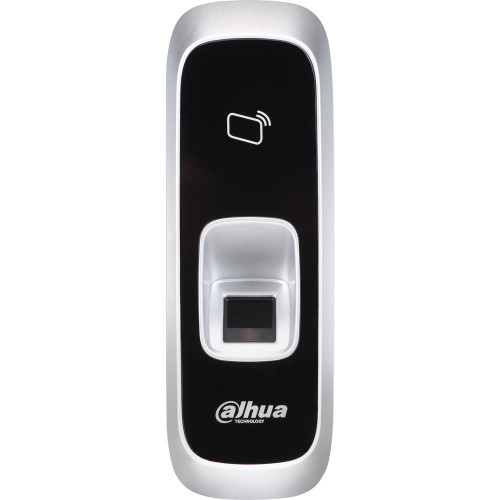

The Fingerprint Reader by Dahua is a biometric recognition device and also a counterpart to video monitoring and visual talk. Its appearance is neat and fashionable, and its function is enhanced. The Mifare card or EM card reading distance is 6 cm to 10 cm with a response time of 0.1s. It features a blue backlight, beep indicator, and watchdog function ensuring the device is free from halting.
The DHI-ASR1102A(V2) features Wiegand protocol and RS485 output. RS495 baud rate is 9600 bps. It can read 32 bit Mifare SN and uses high safety 64 bit key for mutual verification, via security algorithm. It has an advanced key management system, lowering risk due to stolen data and copied intelligent card. All connection ports have over-current and voltage protection. Thanks to its IP65 protection rating, this Fingerprint RFID Reader is dust-tight.
Brand: Dahua
SKU: DHI-ASR1102A(V2)
In The Box
DHI-ASR1102A(V2) Fingerprint Reader
Screws
Special Feature: Easy to use fingerprint reader with audible and visual indicators
Dimensions: 6.50 x 2.24 x 1.14 inches
Power: 9-15VDC/100mA
Transmission: RS485
Storage: Max fingerprint storage is 3000
Service: No monthly fee
System
Main Processor: 8 Bit
Read
Read Format: 13.56MHz
Read Range: 6-8cm (max.)
Reading time: <0.1s
Fingerprint
Capacity: 3000
Response Time: 0.5s
Recognition Time: 1.5s
FAR: 0.00004%
FRR: 0.15%
Function
Tamper Alarm: Yes
Interface
To Controller: RS485
General
LCD Display: Blue backlight
Beep Tone: Buzzer
Power Supply: 9-15VDC/100mA
Working Environment: -5-+55°C
Working Humidity: 5% to 95%
Dimension(WxDxH): 165mm*57mm*29mm
Weight: 0.25kg
