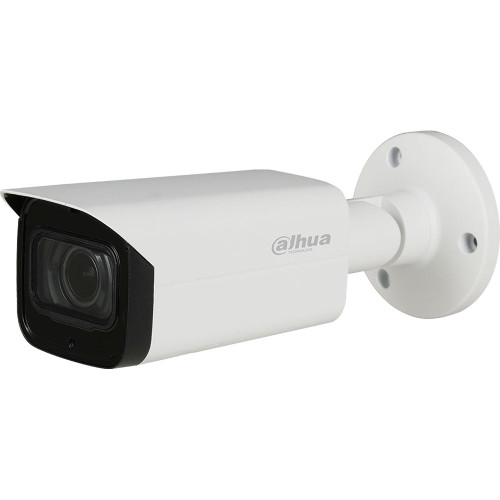

The 8MP 3.6mm IR HDCVI Bullet Camera features an 8MP CMOS sensor and a 3.6mm fixed lens to capture video at resolutions up to 3840 x 2160 at 15 fps in an 87° field of view. It uses Starlight technology to deliver color video in low light conditions down to 0.005 lux and it has an IR cut filter and IR LEDs for 0 lux night vision as far as 262'. The 4K HDCVI camera uses next-generation ISP chip technology developed by Dahua to deliver stunning video. HDCVI technology guarantees real-time transmission over long distances without loss of video quality. The plug and play approach enables full HD video surveillance without the hassles of configuring a network. The camera is equipped with a built-in microphone for capturing audio, which is transmitted over coax along with the video signals. Designed for outdoor use, the camera is housed in an IP67-rated weather-resistant enclosure.
Brand: Dahua
SKU: A82AF53
In The Box
8MP 3.6mm IR HDCVI Bullet Camera
Dimensions: 9.61 x 3.56 x 3.56 inches
Power: 12 VDC ± 30%
Transmission: BNC, Coax
Service: No monthly fee
Camera
Sensor: 1/2" CMOS
Effective Pixels: 3840 x 2160, 8 MP
Scanning System: Progressive
Electronic Shutter Speed: 1/100,000 to 1/3 Second
Minimum Illumination: Color: 0.005 Lux at f/1.6 (30 IRE), 0 Lux with IR On
S/N Ratio: >65 dB
IR Range: 262.47' / 80 m
IR Control: Auto, Manual
IR LEDs: 4
Lens
Lens Type: Fixed Lens, Fixed Iris
Mount Type: Board-In
Focal Length: 3.6mm
Maximum Aperture: f/1.6
Horizontal Angle of View: 87°
Close Focus Distance: 98.43" / 2500 mm
Camera Adjustment Range
Horizontal: 0 to 360°
Vertical: 0 to 90°
Rotation: 0 to 360°
Video
Resolution: 3840 x 2160 (8 MP)
Frame Rate:
HD-CVI: 15 fps at 8 MP, 20 fps at 6 MP, 30 fps at 4 MP
CVBS: 960H
Output: 1 x BNC HD-CVI Channel, Switchable to CVBS
Day/Night: Auto (IR Cut Filter), Manual
OSD Menu: Multi-Language
BLC Modes: BLC, HLC, True WDR
WDR: 120 dB
Gain Control: Automatic (AGC)
Noise Reduction: 2D, 3D
White Balance: Auto, Manual
Smart IR: Auto, Manual
Audio
Interface: 1 x RCA, Input, Built-In Microphone
Electrical
Power Supply: 12 VDC ±30%
Maximum Power Consumption: 11.3 W
Environmental
Operating/Storage Temperature: -22 to 140°F / -30 to 60° C
Operating/Storage Humidity: 90% RH Maximum
Ingress Protection: IP67
Construction
Casing: Aluminum
Dimensions: 244.1 x 90.4 x 90.4 mm
Weight: 0.93 lb / 0.42 kg
