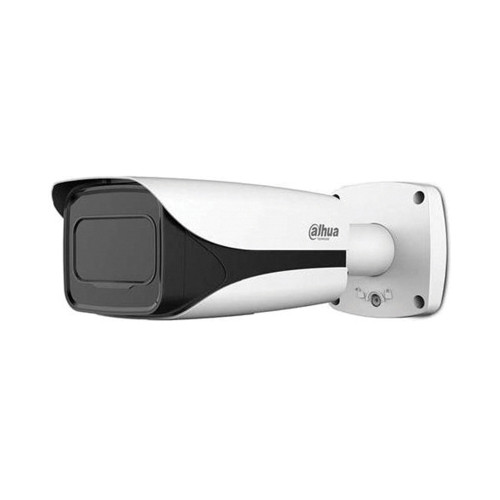

The 8MP WDR HDCVI IR Bullet Camera has a large, 1/2" image sensor, and captures Ultra HD 4K (3840 x 2160) resolution video at 15 frames per second, and 2560 x 1440 resolution at real-time 30 fps. It also features 328 ft of IR LED night vision that captures crisp black-and-white images in complete darkness. The 8MP Bullet Camera has a 3.7-11mm varifocal lens that provides a 46-112° field of view. The camera also provides an audio input for an optional external mic for sound recording. Other advanced features include Wide Dynamic Range and 3D Noise Reduction.
Transmitting via HDCVI output, which supports extended cable distances, the camera allows you to send UHD 4K resolution video up to 2300 ft to an HDCVI DVR using RG-59 or RG-6 coax cables. Full HD 1080p video can be carried 2600 ft, and 720p close to 4000 ft. DVRs and cables are sold separately. Weatherproof and vandal-resistant, the camera can safely be used outdoors and indoors. Featuring a bullet-style body, it attaches to a wall using an included bracket. Also, supporting dual voltage input, 12 VDC or 24 VAC and a +/-25% input voltage tolerance, the 8MP Bullet Camera suits even unstable power supply conditions.
Brand: Dahua
SKU: A83ABBZ
In The Box
8MP WDR HDCVI IR Bullet Camera
Mounting Template
4 x Bolts
4 x Self-Tapping Screws
Hex Wrench
Documentation CD
Dimensions: 10.76 x 3.74 x 3.74 inches
Power: 24 VAC ±25% or 12 VDC ±25%
Transmission: BNC, Coax
Service: No monthly fee
Camera
Image Sensor: 8 MP 1/2" CMOS
Effective Pixels: 3840 x 2160
Scanning System: Progressive
Electronic Shutter Speed: 1/1 - 1/100,000 s
Minimum Illumination: Color: 0.01 lux at f/1.5, 0 lux with IR on
S/N Ratio: More than 65 dB
IR Range: 328 ft (100 m)
IR LED Control: On/Off: Auto, Manual
IR LEDs: 4
Lens
Lens Type: On-board, motorized lens / auto iris
Focal Length: 3.7-11mm
Aperture: f/1.5
Field of View: 46-112°
Focus Control: Auto, Manual
Minimum Focus Distance: 7.9" (20 cm)
Camera Adjustment Range
Horizontal: 0 to 360°
Vertical: 0 to 90°
Rotation: 0 to 360°
Video
Resolution: 3840 x 2160 at 15 fps, 2560 x 1440 at 30 fps
Video Output: 1 x HDCVI on BNC, 1 x CVBS on BNC
Day/Night: Auto (IR Cut Filter), Manual
OSD Menu: Multi-Language
BLC Modes: BLC, HLC, WDR
WDR: 120 dB
Gain Control: Automatic (AGC)
Noise Reduction: 2D, 3D
White Balance: Auto, Manual
Smart IR: Auto, Manual
Audio
Interface: 1 x RCA, Input
Electrical
Power Supply: 24 VAC ±25%, 12 VDC ±25%
Maximum Power Consumption: 18.4 W maximum
Environmental
Operating/Storage Temperature: -40 to 140°F (-40 to 60°C)
Operating/Storage Humidity: Less than 90%
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Aluminum
Dimensions: 27 x 9.7 x 9.7 cm
Weight: 2.6 lb (1.2 kg)
