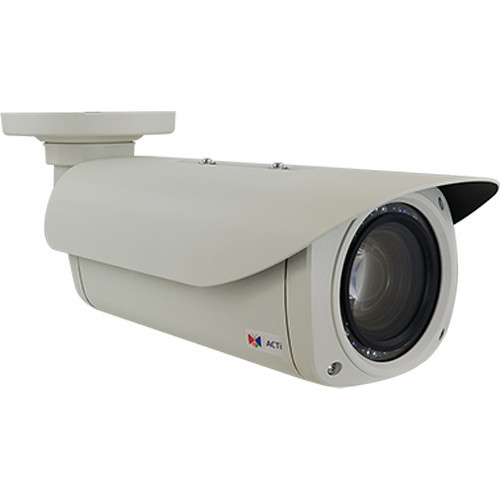

The ACTi B412 features a 1/2.8" progressive scan CMOS sensor and 4.7-47mm zoom lens for capturing videos at a maximum resolution of 2048x1536. It's equipped with a removable IR cut filter and 10 adaptive IR LEDs with a range of up to 197 ft. For instance, the camera is able to capture clear car license plate at the entry of the semi-outdoor parking lot with both poorly and strongly illuminated areas.
Superior Low Light Sensitivity and extreme Wide Dynamic Range of 145 dB enhances image quality and provide clear and crisp images in low-light environments. The camera is enclosed in an IP67-rated weather-resistant and IK10-rated vandal-resistant housing. It also features a built-in heater and a dehumidifier.
Brand: ACTi
SKU: B412
In The Box
Camera
Hex Screwdriver
Bracket Plate
Mounting Screw Kit
Sunshield, Sunshield Screws
Female & Male Conduit and Cable Glands
2x Gland Rubber Ring
Drill Templ.
2 Terminal Blocks: Power; Audio & DI/DO
Quick Install Guide
Special Feature: This camera provides 24-hour surveillance thanks to the IR cut filter and adaptive IR LED.
Dimensions: 4.14" x 4.88" x 14.5"
Power: PoE Class 4 (IEEE802.3at) / 18.8 W, DC 12V (adapter not included) / 15.6 W
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1450 TVL
Day / Night: Yes
Low Light Sensitivity: Superior
IR Sensitivity Range: 700-1100nm
Focal Length: Zoom, f4.7-47mm
Aperture: F1.6-F3.0
Horizontal Viewing Angle: 58° - 5.8°
Vertical Viewing Angle: 45.3° - 5°
Max. Frame Rate vs. Resolution: 30 fps at 2048 x 1536;60 fps at 1920 x 1080;30 fps at 1280 x 960;60 fps at 1280 x 720;30 fps at 800 x 600;30 fps at 640 x 480;30 fps at 320 x 240
Image Orientation: Flip, Mirror, Rotation
Network Protocol & Service: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (10 regions), External device through digital input, Sound detection
Event Response: Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video or snapshot to FTP server, Activate external device through digital output
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: DC 12V, High PoE
Power Consumption: 18.8 W (PoE, heater and IR on), 15.6 W (DC, heater and IR on)
Weight: 2098g (4.625lb)
Dimensions: (W x H x D): 105.11mm x 124.06mm x 368.5mm (4.14" x 4.88" x 14.51")
