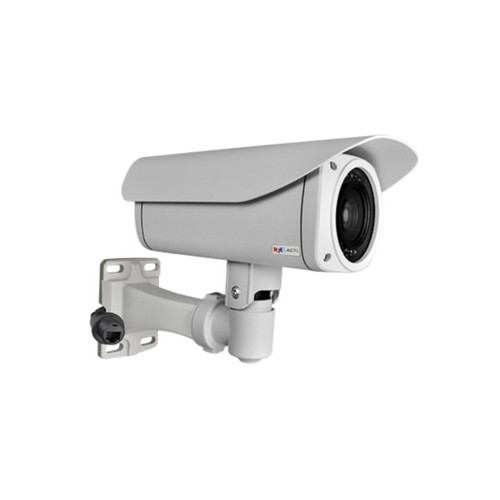

The ACTi B419 is a basic WDR camera with built-in analytics. It is a product with exceptional features for complete monitoring. It is an indoor-outdoor, bullet camera that has a 10x zoom lens with f4.7 ∼ 47 mm / F1.6 - 3.0, DC iris, Auto Focus. It features a maximum frame rate and resolution of 30 fps at 2592x1944 ensuring clear and quality video.
H.265, H.264, and MJPEG compression maximize storage and bandwidth usage, keeping your system up and running when you need it most. The camera's features include Auto Gain Control, White Balance, Day/Night Recording, Digital Noise Reduction, Motion Detection Tracking, ONVIF compliant, and Wide Dynamic Range.
Brand: ACTi
SKU: B419
In The Box
Camera
Hex Screwdriver
Bracket Plate
Mounting Screw Kit
Sunshield, Sunshield Screws
Female & Male Conduit and Cable Glands
2x Gland Rubber Ring
Drill Templ.
2 Terminal Blocks: Power; Audio & DI/DO
Quick Install Guide
Special Feature: This ACTi B419 camera is excellent for stores and other small businesses.
Dimensions: 4.82" x 4.8" x 14.2"
Power: PoE Class 4 (IEEE802.3at) / 25.5 W, DC 12V (adapter not included)
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1750 TVL
Day / Night: Yes
Low Light Sensitivity: Superior
IR Sensitivity Range: 700-1100nm
Focal Length: Zoom, f4.7-47mm
Aperture: F1.6-F3.0
Horizontal Viewing Angle: 50.67° - 5.14°
Vertical Viewing Angle: 39.23° - 3.86°
Max. Frame Rate vs. Resolution: 30 fps at 2592 x 1944;30 fps at 2048 x 1536;30 fps at 1920 x 1080;30 fps at 1280 x 960;30 fps at 1280 x 720;30 fps at 800 x 600;30 fps at 640 x 480;30 fps at 320 x 240
Image Orientation: Flip, Mirror, Rotation
Network Protocol & Service: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (10 regions), External device through digital input, Sound detection
Event Response: Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: DC 12V, High PoE
Power Consumption: 25.5 W (PoE)
