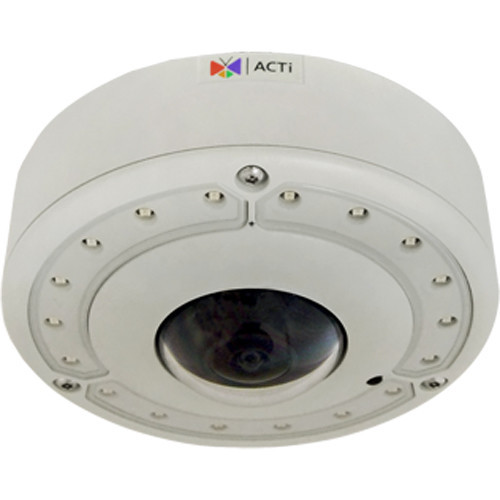

The 8MP Video Analytics Outdoor Hemispheric Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed lens Camera from ACTi utilizes a 1/1.8" progressive scan image sensor and 1.65mm fisheye lens to capture images at a maximum resolution of 4000 x 3000 fisheye view video at 18 fps. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of up to 66 ft. Enclosed in an IP68- and IK10-rated (IP rating) housing, the camera can be used for both indoor and outdoor applications.
The camera features OZT (Overview, Zoom, and Tracking) technology for automatically tracking a suspicious object within a wide area. The low light sensitivity and extreme Wide Dynamic Range (130 dB) enhance image quality, and provide clear and crisp images in low-light environments.
Brand: ACTi
SKU: B74A
In The Box
Camera
3 Terminal Blocks: Power, DI/DO, Audio In/Out
Conduit Gland
Cable Gland
Hex Screwdriver
Screw Plugs
Screws for Surface Mount
Rag
Drill Templ.
Quick Install Guide
Special Feature: The camera supports features like motion & sound detection for maximum protection.
Dimensions: 6.0" x 2.8"
Power: PoE Class 3 IEEE802.3af / 7.3 W DC 12V (adapter not included)
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1850 TVL
Day / Night: Yes
Low Light Sensitivity: Superior
IR Sensitivity Range: 700-1100nm
Focal Length: Fixed focal, f1.65mm
Aperture: F2.8
Horizontal Viewing Angle: 198.5° (overview area), 121.1° (high detail area)
Vertical Viewing Angle: 198.5°
Max. Frame Rate vs. Resolution: (Fisheye View) 24 fps at 3072 x 2048, 30 fps at 2048 x 2048, 30 fps at 1600 x 1200, 30 fps at 1024 x 1024, 30 fps at 1280 x 960, 30 fps at 800 x 600, 30 fps at 640 x 480, (Dewarped View) 10 fps at 4096 x 2160, 10 fps at 3840 x 2160, 30 fps at 1920 x 1080, 30 fps at 1280 x 960, 30 fps at 1280 x 720, 30 fps at 800 x 600, 30 fps at 640 x 480, (ePTZ View) 30 fps at 1920 x 1080, 30 fps at 1600 x 1200, 30 fps at 1280 x 960, 30 fps at 1280 x 720, 30 fps at 1024 x 1024, 30 fps at 800 x 600, 30 fps at 640 x 480, 30 fps at 320 x 240
Image Orientation: Flip, Mirror
Network Protocol & Service: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection
Event Response: Notify control center, Go to ePTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Save video or snapshot to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption: 7.3 W (PoE)
