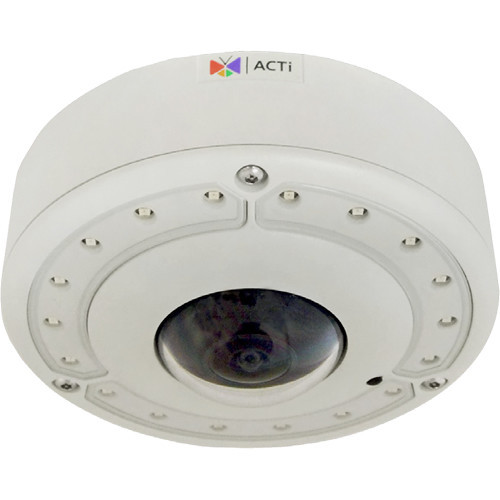

The B76A 12MP Outdoor Hemispheric Network PTZ Dome Camera from ACTi features a 1/1.7" progressive scan CMOS sensor and 1.65mm fixed lens for capturing images at a maximum fisheye resolution of 4000 x 3000. It provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of 66 ft.
This innovative camera supports motion, tamper, and shock detection. The combination of instant and accurate object detection and classification alerts, with the identification performance of high-definition video, provides users with an unmatched level of perimeter protection to keep both personnel and assets safe. The HD outdoor dome camera is a great solution for monitoring both daytime and nighttime outdoor activities. It features an integrated lens for remote focus and zoom control with excellent low light performance.
Brand: ACTi
SKU: B76A
In The Box
Camera
3 Terminal Blocks: Power, DI/DO, Audio In/Out
Conduit Gland
Cable Gland
Hex Screwdriver
Screw Plugs
Screws for Surface Mount
Rag
Drill Templ.
Quick Install Guide
Special Feature: This PTZ camera supports motion, tamper, and shock detection.
Dimensions: 6.0" x 2.8"
Power: PoE Class 3 IEEE802.3af / 8.8 W DC 12V (adapter not included) / 7W
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 2250 TVL
Day / Night: Yes
Low Light Sensitivity: Superior
IR Sensitivity Range: 700-1100nm
Focal Length: Fixed focal, f1.65mm
Aperture: F2.8
Horizontal Viewing Angle: 198.5° (overview area), 121.1° (high detail area)
Vertical Viewing Angle: 198.5°
Max. Frame Rate vs. Resolution: (Fisheye View) 18 fps at 4000 x 3000, 30 fps at 2048 x 2048, 30 fps at 1600 x 1200, 30 fps at 1280 x 960, 30 fps at 1024 x 1024, 30 fps at 800 x 600, 30 fps at 640 x 480, (Dewarped View) 10 fps at 4096 x 2160, 10 fps at 3840 x 2160, 30 fps at 1920 x 1080, 30 fps at 1280 x 960, 30 fps at 1280 x 720, 30 fps at 800 x 600, 30 fps at 640 x 480, (ePTZ View) 30 fps at 1920 x 1080, 30 fps at 1600 x 1200, 30 fps at 1280 x 960, 30 fps at 1280 x 720, 30 fps at 1024 x 1024, 30 fps at 800 x 600, 30 fps at 640 x 480, 30 fps at 320 x 240
Image Orientation: Flip, Mirror
Network Protocol & Service: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection
Event Response: Notify control center, Go to ePTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Save video or snapshot to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included)
Power Source: PoE Class 3 (IEEE802.3af), DC 12V
Power Consumption: 8.8 W (PoE), 7 W (DC)
Weight: 1313g (2.89lb)
Dimensions: (⌀ x H): 152.00mm x 71.00mm (6.0" x 2.8")
