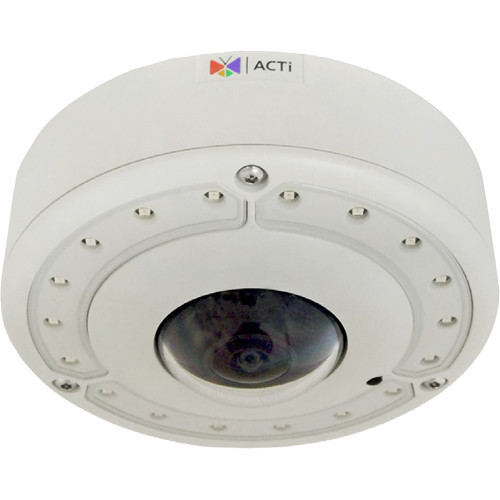

The B77A 6MP Outdoor PTZ Hemispheric Network Dome Camera from ACTi features a 1/1.8" progressive scan CMOS sensor and 1.65mm fixed lens for capturing images at a maximum fisheye resolution of 3072 x 2048. It provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of 66ft. The camera supports motion, tamper, and shock detection. It is weatherproof and vandal proof making it the perfect solution for outdoor monitoring.
The simultaneous streaming based on 3 configurations allows for multiple surveillance options. The camera also features email notifications with snapshots, option to upload video to an FTP server or NVR server, and push notifications to mobile devices.
Brand: ACTi
SKU: B77A
In The Box
Camera
3 Terminal Blocks: Power, DI/DO, Audio In/Out
Conduit Gland
Cable Gland
Hex Screwdriver
Screw Plugs
Screws for Surface Mount
Rag
Drill Templ.
Quick Install Guide
Special Feature: It uses H.264 compression to significantly reduce bandwidth and storage requirements.
Dimensions: 6.0" x 2.8"
Power: DC 12V / 6W; PoE Class 3 IEEE802.3af / 7.5 W
Transmission: Ethernet (10/100 Base-T), RJ-45 connector
Storage: MicroSDHC/MicroSDXC memory card, NVR
Service: No monthly fee
Image Sensor: Progressive Scan CMOS
Horizontal Resolution: 1800 TVL
Day / Night: Yes
Low Light Sensitivity: Superior
IR Sensitivity Range: 700-1100nm
Focal Length: Fixed focal, f1.65mm
Aperture: F2.8
Horizontal Viewing Angle: 198.5° (overview area), 121.1° (high detail area)
Vertical Viewing Angle: 198.5°
Max. Frame Rate vs. Resolution:(Fisheye View) 20 fps at 3072 x 2048, 30 fps at 2048 x 2048, 20 fps at 1280 x 960, 30 fps at 1024 x 768, 30 fps at 800 x 600, 30 fps at 640 x 480, (Dewarped View) 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 640 x 480, (ePTZ View) 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 640 x 480
Image Orientation: Flip, Mirror
Network Protocol & Service: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port: 1 x RJ-45 connector
Wireless: No
Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
Event Trigger: Video motion detection (10 regions), External device through digital input, Sound detection, Tampering detection*
Event Response: Notify control center, Go to ePTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output (To be available through future firmware upgrade)
Local Storage: MicroSDHC, MicroSDXC memory card slot (card not included), To be available through future firmware upgrade
Power Source: DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption: 12.95 W (PoE)
